Brookline 1213S Center Hung Pivot Set

<< Previous in Center Hung Pivot Sets Next in Center Hung Pivot Sets >>
Brookline 1213S
Brookline 1213S1213S Dimensions1213S Bottom Pivot1213S Top Pivot
MSRP: $400.00
Our Price: $240.00
Part Number: BRL-1213S-32D
Manufacturer: Brookline
MFG Model #: 1213S-32D
Brookline
Brookline Model 1213S

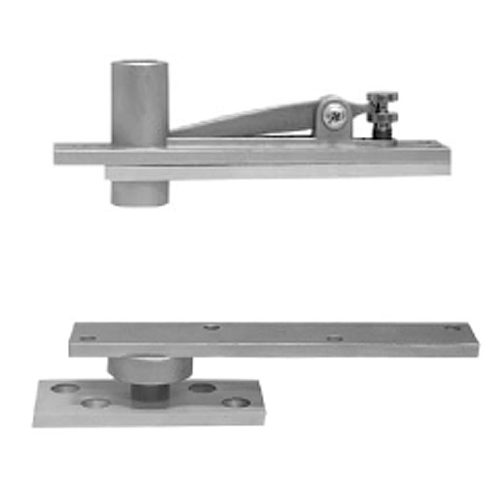

Center Hung Pivot Set in Stainless Steel - Complete Package

Application
Center Hung
Interior or Exterior Doors
Weight to 500 lbs.
Width to 4'-0"
Height to 8'-6"
1-3/4" Minimum Door Thickness

Handing
Non-handed

Finish
US32D Satin Stainless Steel

Features
Complete set includes bottom & top pivot
  • Bottom pivot mounts directly to floor
  • Bearings top pivot and bottom arm
  • Bottom pivot bearing sealed for protection against weather and debris
  • Top pivot spindle adjustable up to 1"
  • Investment cast stainless steel
  • Pivot point centered in thickness of door
  • Door must have radius on pivot edge
  • Weight of door borne by floor
  • Doors do not return to center
  • Furnished with wood and machine screws
