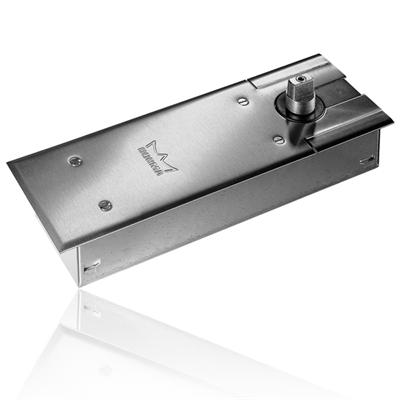

Dorma BTS75V/D Door Closer "D" Package

• Adjustable spring size 1-4
• Can be installed and adjusted to meet 8.5 lb maximum opening force requirements for exterior doors
• Compact closer body and cement case 2" deep suited for thin slab concrete construction
• Accommodates doors weighing up to 260 lbs. and measuring up to 3'-6" wide interior and 3'-0" exterior
• Mechanical backcheck at approximately 70°
• Dual thermostatic control valves combined with special hydraulic fluid provide controlled closing from 175°
• Optional single point hold open units available for 90° or 105°
• A pressure relief valve protects closer from damage caused by forced closing
• Closer adjustment in cement case provides 3/8" lateral, 1/4" longitudinal, and 5/32" height adjustment
• Dorma Model 75220 Intermediate Pivot sold separately
• Closer body available less all parts (-LAP)

Listed specifications for models stocked and available for immediate shipment from ePivots online store. Please call for fire-rated, special finish or other configuration requirements.
