Dorma BTS75V/G Door Closer "G" Package

<< Previous in Center Hung Floor Closers Next in Center Hung Floor Closers >>
Dorma BTS75V/G
Our Price: Starting at $717.00
Manufacturer: Dorma
Model: BTS75V/G

Specify Model Options

Dorma

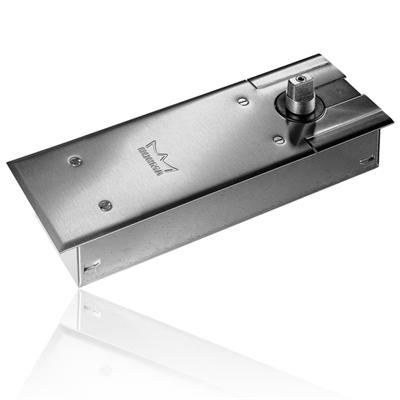

Dorma BTS75V/G
Single Acting Center Hung Floor Closer - Complete "G" Package for Aluminum Door & Frame

Application
Single Acting
Interior or Exterior Doors
Weight to 260 lbs.
Interior Door Width to 3'-6"
Exterior Door Width to 3'-0"

Spring Size
Adjustable, 1-4

Hold Open
Specify Non-Hold Open (NHO), Barrier Free (NHO-BF), 90° Hold Open (HO-90) or 105° Hold Open (HO-105)

Handing
Specify LH or RH
Door Handing Diagram
div>

Finish
Specify 605, 606, 613, 625 or 626

Bright Brass Satin Brass Oil Rubbed Bronze Bright Chrome Satin Chrome
605 - Bright Brass 606 - Satin Brass 613 - Oil Rubbed Bronze 625 - Bright Chrome 626 - Satin Chrome
605
(US3)
606
(US4)
613
(US10B)
625
(US26)
626
(US26D)

Features
Complete Package for Aluminum Door & Frame includes Dorma Model BTS75V Closer & Cement Case, 8062 Top Pivot, 7422 Bottom Arm, 74010 (3/4") Spindle & 7510 Cover Plate

  • Adjustable spring size 1-4
  • Can be installed and adjusted to meet 8.5 lb maximum opening force requirements for exterior doors
  • Compact closer body and cement case 2" deep suited for thin slab concrete construction
  • Accommodates doors weighing up to 260 lbs. and measuring up to 3'-6" wide interior and 3'-0" exterior
  • Mechanical backcheck at approximately 70°
  • Dual thermostatic control valves combined with special hydraulic fluid provide controlled closing from 175°
  • Optional single point hold open units available for 90° or 105°
  • A pressure relief valve protects closer from damage caused by forced closing
  • Closer adjustment in cement case provides 3/8" lateral, 1/4" longitudinal, and 5/32" height adjustment
Listed specifications for models stocked and available for immediate shipment from ePivots online store. Please call for fire-rated, special finish or other configuration requirements.
