Dorma BTS75V/H Door Closer "H" Package

<< Previous in Center Hung Floor Closers Next in Center Hung Floor Closers >>
Dorma BTS75V/H
Our Price: Starting at $702.60
Manufacturer: Dorma
Model: BTS75V/H

Specify Model Options

Dorma

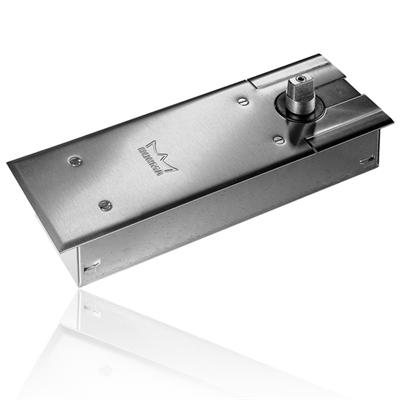

Dorma Model BTS75V/H
Single Acting Center Hung Floor Closer - Complete "H" Package for Wood/Steel Door & Frame

Application
Single Acting
Interior or Exterior Doors
Weight to 260 lbs.
Interior Door Width to 3'-6"
Exterior Door Width to 3'-0"

Spring Size
Adjustable, 1-4

Hold Open
Specify Non-Hold Open (NHO), 90° Hold Open (90) or 105° Hold Open (105)

Handing
Specify LH or RH
Door Handing Diagram
Finish
Specify 605, 606, 613, 625 or 626

Bright Brass Satin Brass Oil Rubbed Bronze Bright Chrome Satin Chrome
605 - Bright Brass 606 - Satin Brass 613 - Oil Rubbed Bronze 625 - Bright Chrome 626 - Satin Chrome
605
(US3)
606
(US4)
613
(US10B)
625
(US26)
626
(US26D)

Features
Complete package for Wood/Steel Door & Frame includes Dorma Model BTS75V Closer Body & Cement Case, 80010 (3/4" Clearance) Spindle with 3 Degree Preload (Offset) for Single Acting Applications, 7421 Bottom Arm, 7510 Cover Plate, and 8062 Top Pivot

  • Adjustable spring size 1-4
  • Can be installed and adjusted to meet 8.5 lb maximum opening force requirements for exterior doors
  • Compact closer body and cement case 2" deep suited for thin slab concrete construction
  • Accommodates doors weighing up to 260 lbs. and measuring up to 3'-6" wide interior and 3'-0" exterior
  • Mechanical backcheck at approximately 70°
  • Dual thermostatic control valves combined with special hydraulic fluid provide controlled closing from 175°
  • Optional single point hold open units available for 90° or 105°
  • A pressure relief valve protects closer from damage caused by forced closing
  • Closer adjustment in cement case provides 3/8" lateral, 1/4" longitudinal, and 5/32" height adjustment
Listed specifications for models stocked and available for immediate shipment from Epivots online store. Please call for fire-rated, special finish or other configuration requirements.
