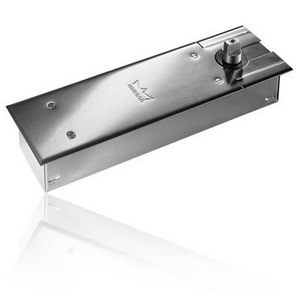

Dorma BTS80/A Door Closer "A" Package
|
|
MSRP: $1,230.00
Our Price: $738.00
Manufacturer: Dorma
Model: BTS80/A
Specify Model Options
| |
| |
|
Dorma Model BTS80/A
Double Acting Center Hung Floor Closer - Complete "A" Package for Aluminum Door and Frame
Application
Double Acting
Interior or Exterior Doors
Weight to 660 lbs.
Interior Door Width to 4'-6"
Exterior Door Width to 4'-0"
Spring Size
Specify Size 3 (Old BFE, Barrier Free), 4 (Old Size 2, Standard) or 6 (Old Size 3, Strong)
Hold Open
Field Selectable Multipoint hold open between 75° and 175° or Delayed Action Non-Hold Open
Handing
Non-handed
Finish
Specify 605, 606, 613, 625 or 626
Features
Complete Package for Aluminum Door and Frame includes Dorma Model BTS80 Closer Body and Cement Case, 8062 Top Pivot, 7422 Bottom Arm, 74010 (3/4") Spindle & 7410 Cover Plate
- Available Size 3 (Old Barrier Free Exterior), 4 (Old Size 2, Standard) or 6 (Old Size 3, Strong)
- Compact closer body and cement case 2-3/8" deep suited for thin slab concrete construction
- Closer body is non-handed
- Accommodates doors weighing up to 660 lbs. and measuring up to 4'-6" wide
- Mechanical backcheck at approximately 70° (Size 3, BFE without backcheck feature)
- Dual thermostatic control valves combined with hydraulic fluid provide controlled closing from 175°
- Selectable Multipoint Hold Open
- Delayed Action is functional when hold open is not engaged.
- A pressure relief valve protects closer from damage caused by forced closing
- Closer adjustment in cement case provides 1/4" lateral/longitudinal and 5/32" height adjustment
Listed specifications for models stocked and available for immediate shipment from Epivots online store. Please call for fire-rated, special finish or other configuration requirements.
