Dorma BTS80 Closer Body -Less All Parts
 Dorma Model BTS80 Floor Closer -LAP |
|
MSRP: $864.00
Our Price: $518.40
Manufacturer: Dorma
Model: BTS80
Specify Model Options
| |
|

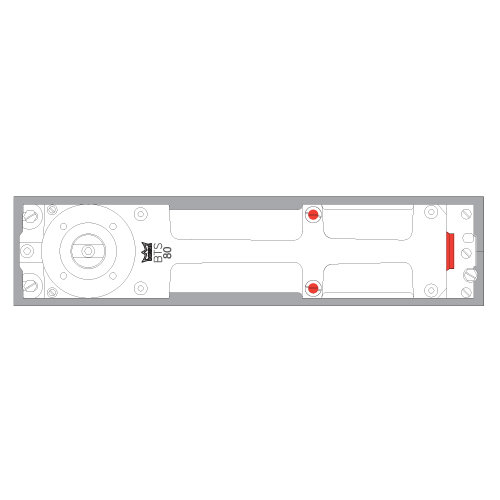

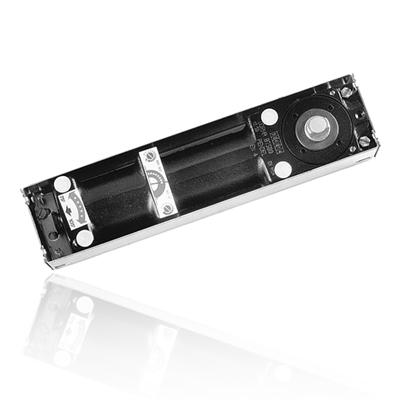

Dorma Model BTS80 Closer Body
Less All Parts
Application
Double or Single Acting
Interior or Exterior Doors
Weight to 660 lbs.
Interior Door Width to 4'-6"
Exterior Door Width to 4'-0"
Spring Size
Specify Size 3 (Old BFE, Barrier Free), 4 (Old Size 2, Standard) or 6 (Old Size 3, Strong)
Hold Open
Selectable Multipoint hold open between 75° and 175°
Handing
Non-handed
Finish
N/A
Features
Dorma Model BTS80 Closer Body with Cement Case
-
Available Size 3 (Old Barrier Free Exterior), 4 (Old Size 2, Standard) or 6 (Old Size 3, Strong)
-
Compact closer body and cement case 2-3/8" deep suited for thin slab concrete construction
-
Closer body is non-handed
-
Accommodates doors weighing up to 660 lbs. and measuring up to 4'-6" wide
-
Mechanical backcheck at approximately 70°. Eliminated on Size 3 (BFE) option to meet the barrier-free opening force requirement through 90° of opening.
-
Dual thermostatic control valves combined with hydraulic fluid provide controlled closing from 175°
-
Delayed action is functional when hold open is not engaged.
-
A pressure relief valve protects closer from damage caused by forced closing
-
Closer adjustment in cement case provides 1/4" lateral/longitudinal and 5/32" height adjustment
Listed specifications for models stocked and available for immediate shipment from ePivots online store. Please call for fire-rated, special finish or other configuration requirements.
