Dorma CP1000 Heavy-Duty Center Hung Pivot Set
|
|
MSRP: $882.00
Our Price: $529.20
Manufacturer: Dorma
Model: CP1000
Specify Model Options
| |
|

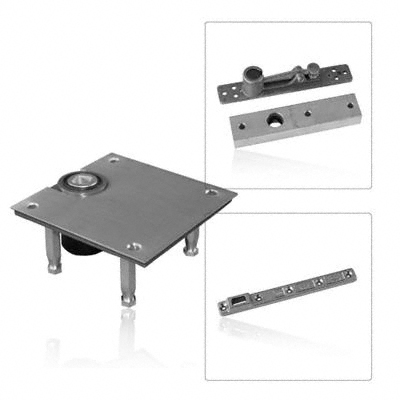

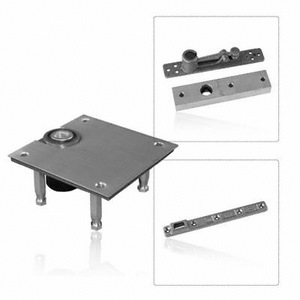

Dorma Model CP1000
Extra Heavy-Duty Center Hung Pivot Set - Complete Package
Application
Single or Double Acting
Wood or Steel Door and Frame
Weight to 1,000 lbs.
Door Width up to 6'-0"
Handing
Non-handed
Finish
Specify 605, 606, 612, 613, 625 or 626 (for Top Pivot Cover Plate and Bottom Pivot Base)
| Bright Brass
|
Satin Brass
|
Satin Bronze
|
Oil Rubbed Bronze
|
Bright Chrome
|
Satin Chrome
|
|
|
|
|
|
|
|
605
(US3)
|
606
(US4)
|
612
(US10)
|
613
(US10B)
|
625
(US26)
|
626
(US26D)
|
Features

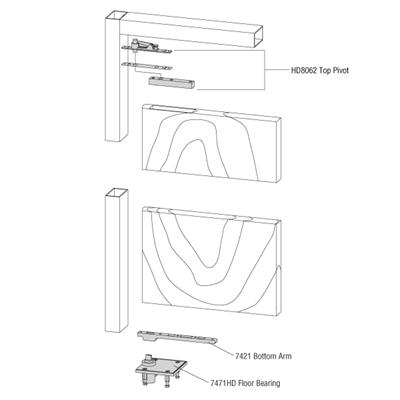

Complete package includes 7471HD Floor bearing, 74005 Spindle, 7421 Bottom Arm & HD8062 Top Pivot.
- Double acting unless stopped by some means on the door frame
- Pivot point centered in thickness of door
- Door must have radius on pivot edge
- Doors do not return to center
- Furnished with machine screws
 File Downloads
|
MSRP: $327.00
Our Price: $196.20

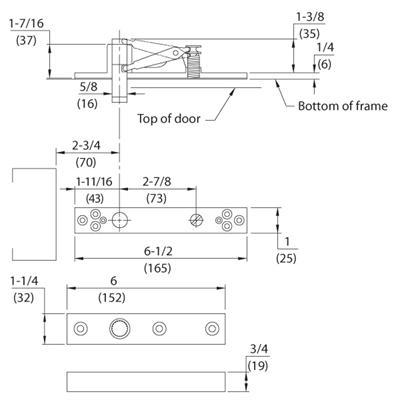

Heavy-Duty Center Hung Top Pivot
|
MSRP: $67.00
Our Price: $40.20
Center Hung Bottom Arm for Wood or Metal Door
|
MSRP: $485.00
Our Price: $291.00

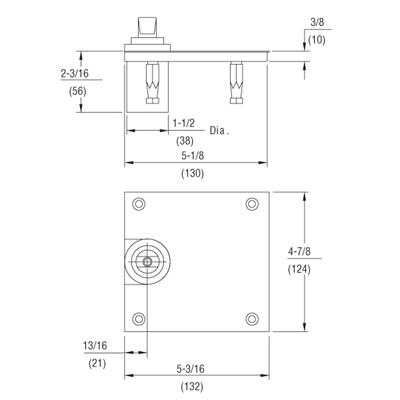

Heavy Duty Floor Bearing
|
|
|
