Dorma CP660 Heavy-Duty Center Hung Pivot Set

<< Previous in Center Hung Pivot Sets Next in Center Hung Pivot Sets >>
Dorma CP660 Pivot
Dorma CP660 Pivot
MSRP: $665.00
Our Price: $399.00
Manufacturer: Dorma
Model: CP660

Specify Model Options
Dorma
Dorma Model CP660
Heavy-Duty Center Hung Pivot Set for Wood or Steel Door and Frame - Complete Package

Application
Single or Double Acting
Wood or Steel Door and Frame
Weight to 660 lbs.
Door Width up to 4'-0"

Handing
Non-handed

Finish
Specify 605, 606, 612, 613, 625 or 626 (for Top Pivot Cover Plate and Bottom Pivot Base)
Bright Brass Satin Brass Satin Bronze Oil Rubbed Bronze Bright Chrome Satin Chrome
605 - Bright Brass 606 - Satin Brass 612 - Satin Bronze 613 - Oil Rubbed Bronze 625 - Bright Chrome 626 - Satin Chrome
605 (US3) 606 (US4) 612 (US10) 613 (US10B) 625 (US26) 626 (US26D)

Features

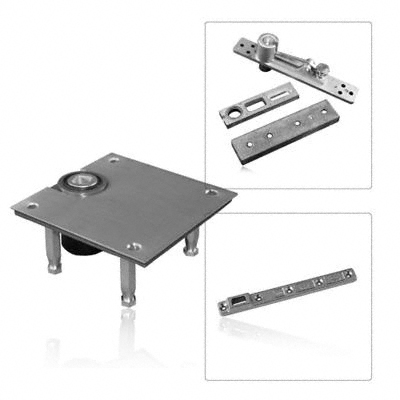

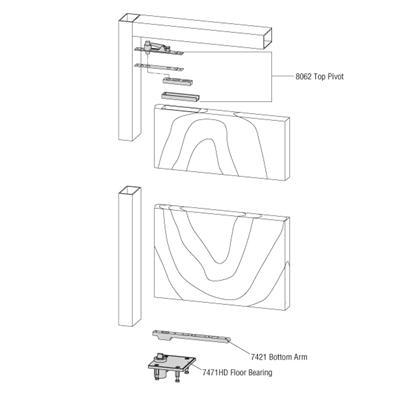

Complete package includes 7471HD Floor bearing, 74005 Spindle, 7421 Bottom Arm & 8062 Top Pivot.

  • Pivot point centered in thickness of door
  • Door must have radius on pivot edge
  • Doors do not return to center
  • Furnished with machine screws
DownloadsFile Downloads

Related Products

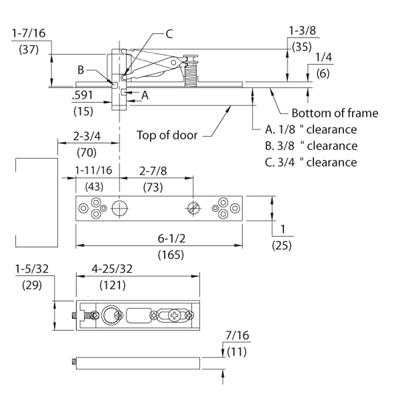

Dorma 8062
Dorma 8062 Top Pivot
MSRP: $113.00
Our Price: $67.80
Dorma 8062 Top Pivot
Center Hung Top Pivot
Dorma 7421
Dorma Part 7421 Arm Package
MSRP: $67.00
Our Price: $40.20
Dorma Part 7421 Arm Package
Center Hung Bottom Arm for Wood or Metal Door

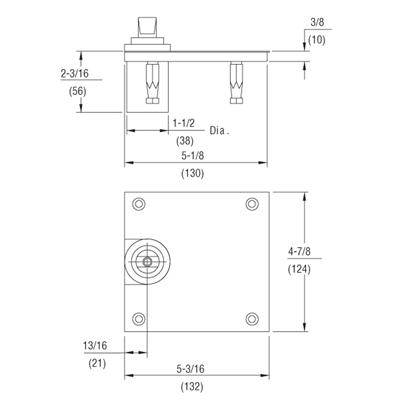

Dorma 7471HD
Dorma Part 7471HD Floor Bearing
MSRP: $485.00
Our Price: $291.00
Dorma Part 7471HD Floor Bearing
Heavy Duty Floor Bearing
