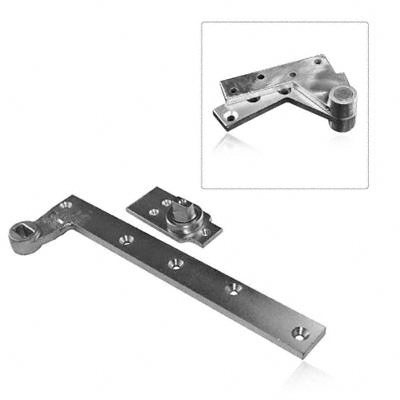

Dorma OP15200 Offset Pivot Set

MSRP: $520.00

Our Price: $312.00

Manufacturer: Dorma

Model: OP15200

Handing:
Finish:

Quantity:

Dorma Model OP15200

1-1/2" Offset Pivot Set - Includes Bottom and Top Pivot.

Application

Single Acting

Wood, Steel or Aluminum Door and Frame

Weight to 200 lbs.

Door Width up to 3'-6"

Handing

Specify LH or RH

Finish

Specify 613 or 626

Features

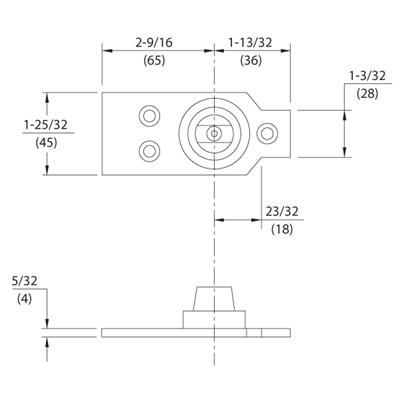

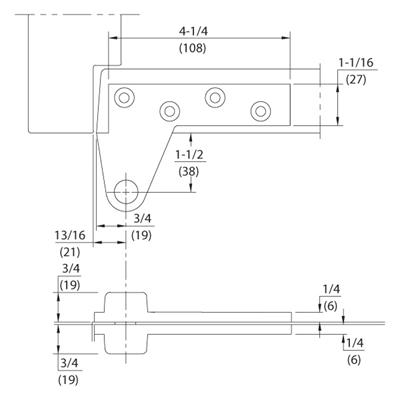

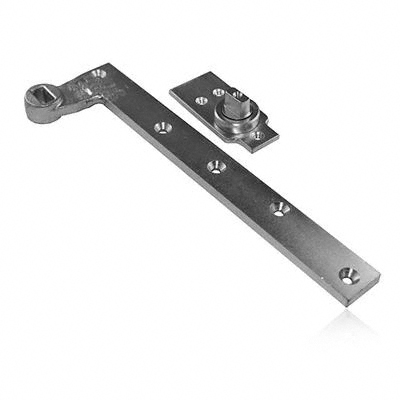

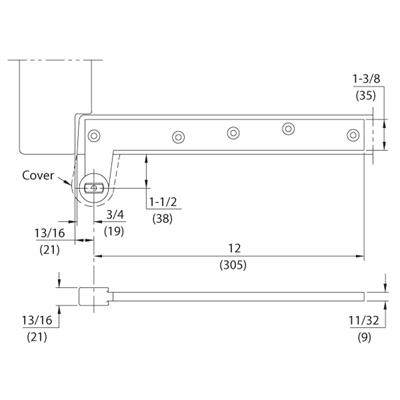

Set includes Dorma Model 7471K Floor Bearing, 15323 1-1/2" Offset Arm and 15120 Top Pivot.

Bottom portion can be ordered separately, select "-less top pivot" option.

1-1/2" Offset (measured from centerline of pivot to face of door)
Door edges must be beveled 1/8" in 2"
Doors will swing up to 180°, trim permitting
Doors over 60" require the use of one intermediate pivot. Every additional 30" of door height warrants another intermediate pivot.
Intermediate pivot 15220 sold separately
Furnished with machine screws

Notes

*Door size and weight guidelines are determined by using the appropriate number of intermediate pivots.
