Dorma OP15500 Offset Pivot Set
 Dorma Model OP15500 Pivot    |
|
MSRP: $915.00
Our Price: $549.00
Manufacturer: Dorma
Model: OP15500
Specify Model Options
| |
| |
|
Dorma Model OP15500
1-1/2" Offset Heavy-Duty Pivot Set - Includes Bottom and Top Pivot
Application
Single Acting
Wood, Steel or Aluminum Door and Frame
Weight to 500 lbs.
Door Width up to 4'-0"
Handing
Specify LH or RH
Finish
Specify 613 or 626
| Oil Rubbed Bronze
|
Satin Chrome
|
|
|
| 613 (US10B)
|
626 (US26D)
|
Features

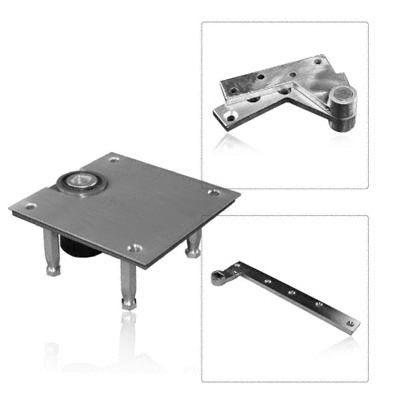

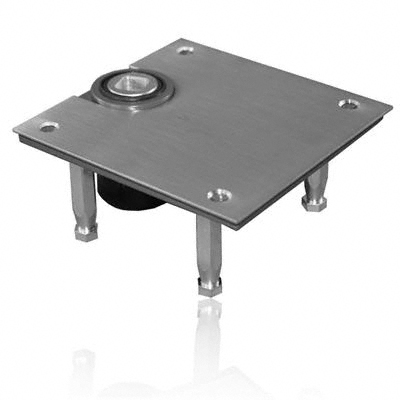

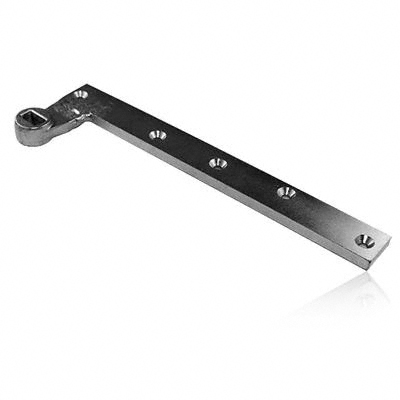

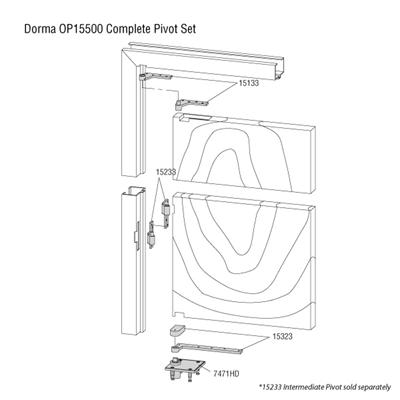

Set includes Dorma Model 7471HD Floor Bearing & Spindle, 15323 Bottom Arm Package and 15120 Top Pivot.
Bottom portion can be ordered separately, select "-less top pivot" option.
- 1-1/2" Offset (measured from centerline of pivot to face of door)
- Door edges must be beveled 1/8" in 2"
- Doors will swing 180°, trim permitting
- Doors over 60" require the use of one intermediate pivot. Every additional 30" of door height warrants another intermediate pivot.
- Intermediate pivot 15220 sold separately
- Furnished with machine screws
Notes
*Door size and weight guidelines are determined by using the appropriate number of intermediate pivots.
 File Downloads
|
MSRP: $215.00
Our Price: $129.00
1-1/2" Offset Top Pivot
|
MSRP: $335.00
Our Price: $201.00
1-1/2" Offset Intermediate Pivot
| |
|
|
