Dorma OP440 Offset Pivot Set
 Dorma Model OP440 Pivot Set    |
|
MSRP: $324.00
Our Price: $194.40
Manufacturer: Dorma
Model: OP440
Specify Model Options
| |
| |
|
Dorma Model OP440

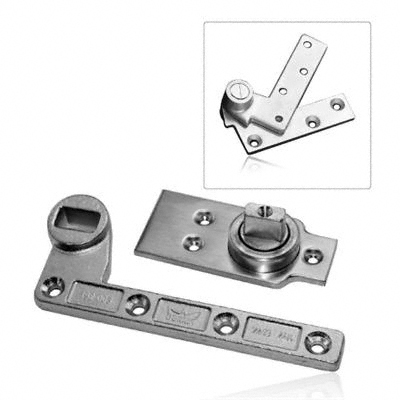

3/4" Offset Pivot Set - Includes Bottom and Top Pivot
Application
Single Acting
Wood, Steel or Aluminum Door and Frame
Weight to 440 lbs.
Door Width up to 4'-0"
Handing
Specify LH or RH
Finish
Specify 605, 606, 612, 613, 625 or 626
| Bright Brass
|
Satin Brass
|
Satin Bronze
|
Oil Rubbed Bronze
|
Bright Chrome
|
Satin Chrome
|
|
|
|
|
|
|
| 605 (US3)
|
606 (US4)
|
612 (US10)
|
613 (US10B)
|
625 (US26)
|
626 (US26D)
|
Features

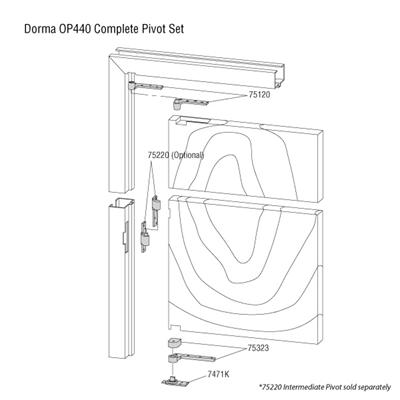

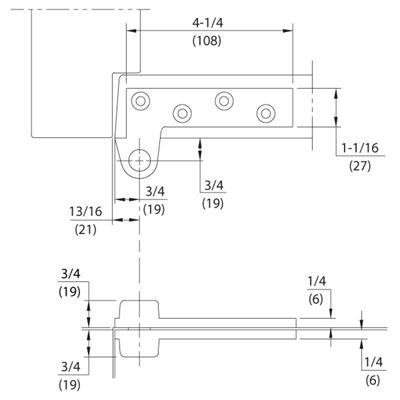

Set includes Dorma Model 75120 Top Pivot.
Bottom portion can be ordered separately, select "-less top pivot" option.

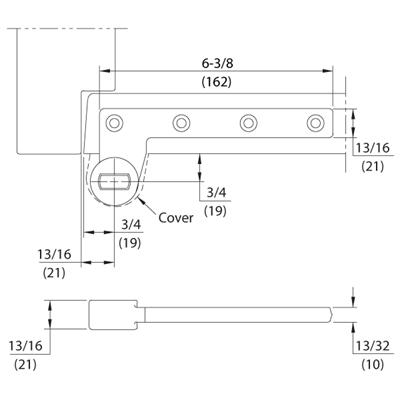

- 3/4" Offset (measured from center-line of pivot to face of door)
- Door edges must be beveled 1/8" in 2"
- Doors will swing up to 180°, trim permitting
- Doors over 60" require the use of one intermediate pivot. Every additional 30" of door height warrants another intermediate pivot.
- Intermediate pivot 75220 sold separately
- Furnished with machine screws
Notes
*Door size and weight guidelines are determined by using the appropriate number of intermediate pivots.
