Dorma OPH750 Offset Pivot Set
|
|
MSRP: $719.00
Our Price: $431.40
Manufacturer: Dorma
Model: OPH750
Specify Model Options
| |
| |
|
Dorma Model OPH750

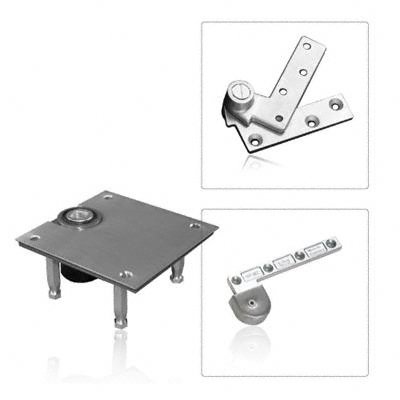

3/4" Offset Heavy-Duty Pivot Set - Includes Bottom and Top Pivot
Application
Single Acting
Wood, Steel or Aluminum Door and Frame
Weight to 750 lbs.
Door Width up to 4'-0"
Handing
Specify LH or RH
Finish
Specify 605, 606, 612, 613, 625 or 626
| Bright Brass
|
Satin Brass
|
Satin Bronze
|
Oil Rubbed Bronze
|
Bright Chrome
|
Satin Chrome
|
|
|
|
|
|
|
| 605 (US3)
|
606 (US4)
|
612 (US10)
|
613 (US10B)
|
625 (US26)
|
626 (US26D)
|
Features

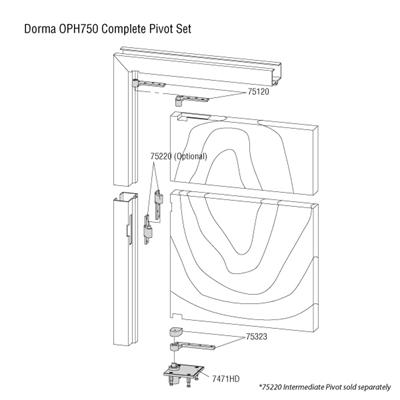

Set includes Dorma Model 75120 Top Pivot.
Bottom portion can be ordered separately, select "-less top pivot" option.
-
3/4" Offset (measured from centerline of pivot to face of door)
-
Door edges must be beveled 1/8" in 2"
-
Doors will swing 180°, trim permitting
-
Doors over 60" require the use of one intermediate pivot. Every additional 30" of door height warrants another intermediate pivot.
-
Intermediate pivot 75220 sold separately
-
Furnished with machine screws
Notes
*Door size and weight guidelines are determined by using the appropriate number of intermediate pivots.
 File Downloads
|
MSRP: $149.00
Our Price: $89.40
3/4" Offset Top Pivot
|
MSRP: $88.00
Our Price: $52.80

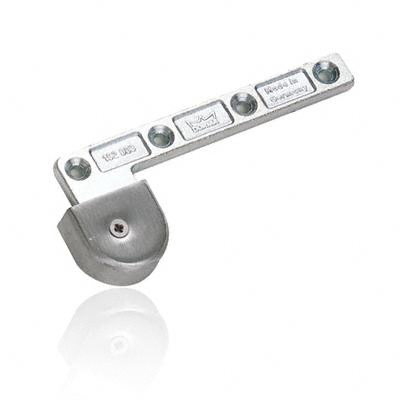

3/4" Offset Hung Bottom Arm
|
MSRP: $485.00
Our Price: $291.00

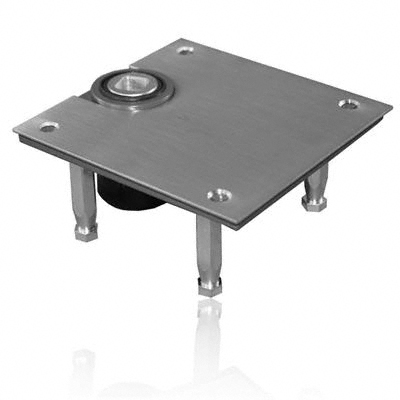

Heavy Duty Floor Bearing
|
|
|
