Norton Model 7500
|
|
MSRP: $378.00
Our Price: $210.60
Manufacturer: Norton
Model: 7500xSN
Specify Model Options
| |
|
Norton Model 7500
Tri-Style Non-Hold Open Institutional Door Closers
Application
Exterior or Interior Doors
Adjustable spring size 1 thru 6
Non-Hold Open
ANSI/BHMA A156.4, Grade 1 certified
UL listed
UL10C compliant for positive pressure
Handing
Non-handed
Finish
Specify 689 (Sprayed Aluminum)
Other sprayed or plated finishes can be ordered upon request. Call for availability and lead times.
Features
-
Tri-Style® package for regular, parallel or top jamb mounting
-
Includes sex nut package for 1-3/4" thick door
-

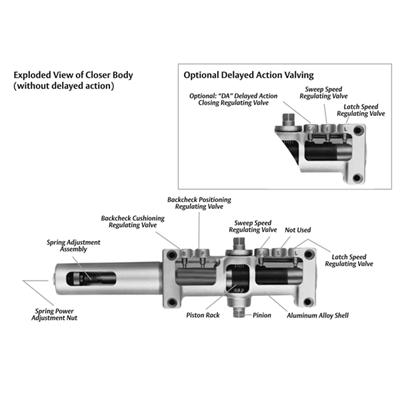

Rack-and-pinion design
-
Cast aluminum body
-
2-1/8" (54mm) projection
-
1-1/2" (38mm) diameter piston
-
5/8" (16mm) diameter pinion journals
-
Staked valves
-
Standard separate and independent latch, sweep and backcheck intensity valves
-
Backcheck positioning valve
-
NorGlide® fluid
-
All standard arm applications allow doors to swing 180°, conditions permitting
-
Includes full size molded plastic cover
 Downloads
|
MSRP: $408.00
Our Price: $226.80
Tri-Style Hold Open Institutional Door Closer
| | |
|
|
