Rixson 147 Offset Pivot Set

<< Previous in Offset Pivot Sets Next in Offset Pivot Sets >>
147 Offset Pivot Set

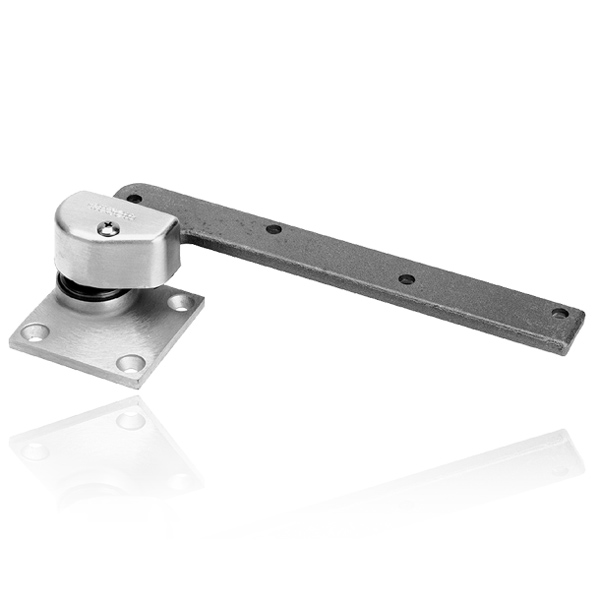

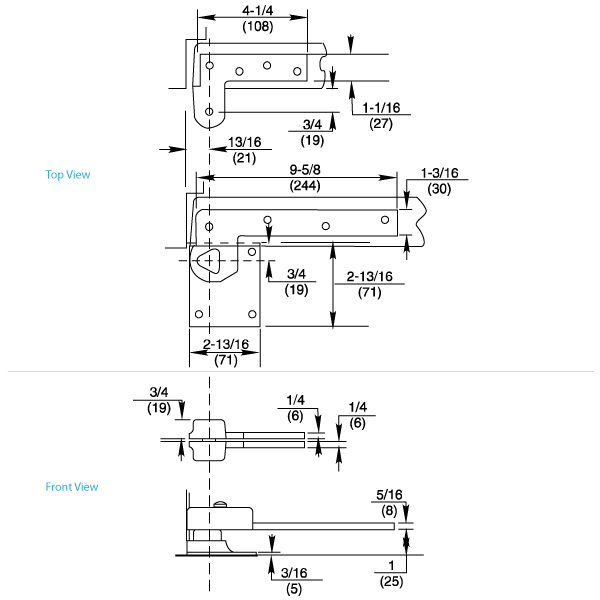

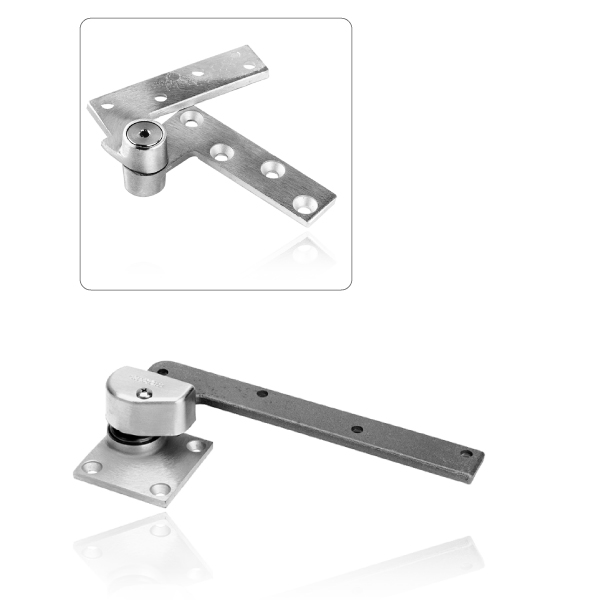

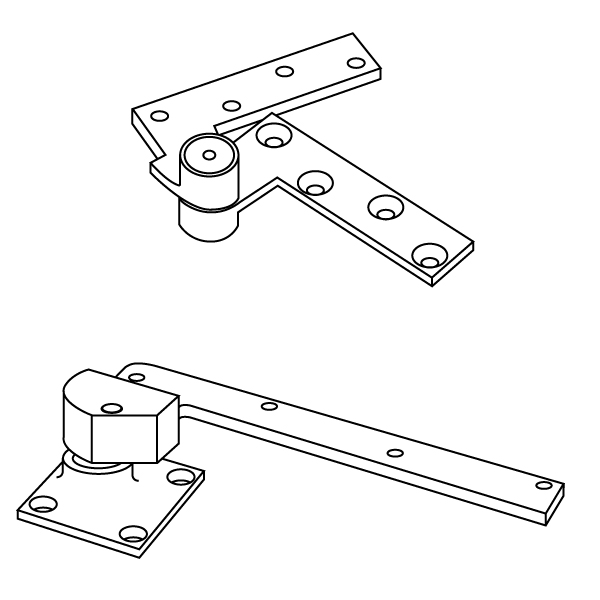

147 Offset Pivot Set147 Offset Pivot Drawing147 Dimensions147 Offset Bottom Pivot180 Offset Top Pivot
MSRP: $587.00
Price: $321.50
Manufacturer: Rixson
MFG Model #: 147

Specify Model Options

Handing:
Finish:
Rixson

Rixson Model 147 Pivot Set

3/4" Offset Pivot Set - Includes Bottom and Top Pivot

Application
Single Acting
Exterior or Interior Doors
Weight to 600 lbs.*
Door Width up to 4'-0"
ANSI C07162

Handing
Specify LH or RH

Door Handing Diagram

Features
Set includes Rixson Model 180 Top Pivot

  • Bottom pivot mounts directly to floor
  • Uses same arm and cap as 27 floor closer
  • Non-ferrous base metal
  • 3/4" offset (measured from center-line of pivot to face of door)
  • Door edges must be beveled 1/8" in 2"
  • Doors will swing 180 degrees, trim permitting
  • Furnished with wood and machine screws
  • Doors up to 90" require the use of one intermediate pivot. Every additional 30" of door height warrants another intermediate pivot.
  • Model M19 Intermediate Pivot(s) sold separately

Notes
*Door size and weight guidelines are determined by using the appropriate number of intermediate pivots.

Finish
Specify 605, 606, 612, 613, 619, 625 or 626

Bright
Brass
Satin
Brass
Satin
Bronze
Dark
Bronze
Satin
Nickel
Bright
Chrome
Satin
Chrome
605 - Bright Brass 606 - Satin Brass 612 - Satin Bronze 613 - Dark Bronze 619 - Satin Nickel 625 - Bright Chrome 626 - Satin Chrome
605
(US3)
606
(US4)
612
(US10)
613
(US10B)
619
(US15)
625
(US26)
626
(US26D)
DownloadsFile Downloads
