Rixson 219 Offset Half-Surface Intermediate Pivot

<< Previous in Intermediate Pivots Next in Intermediate Pivots >>

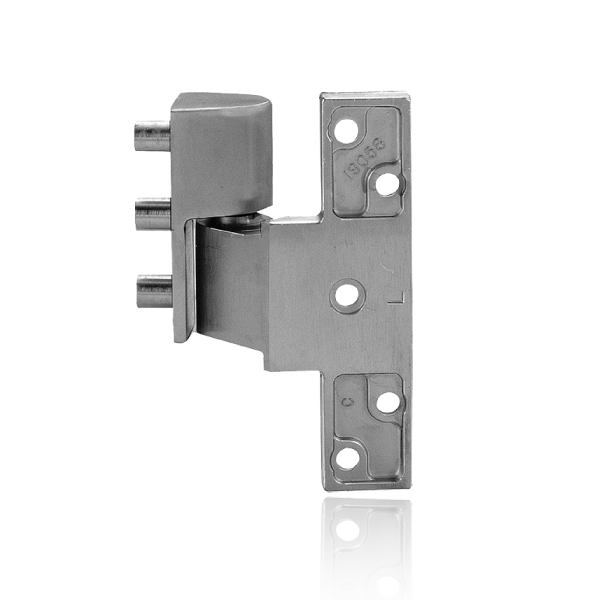

219 Intermediate Pivot

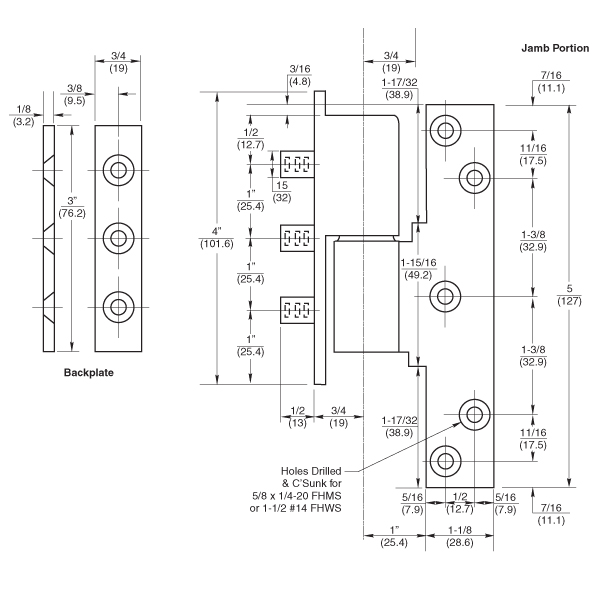

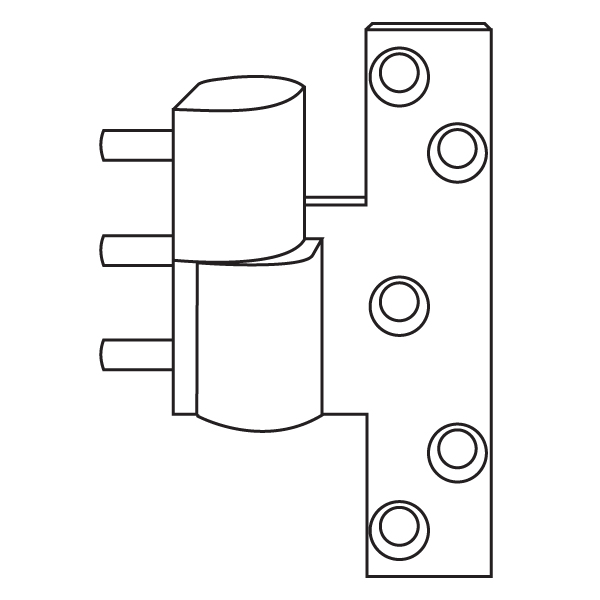

219 Intermediate Pivot219 Drawing219 Dimensions
MSRP: $284.00
Our Price: $170.40
Manufacturer: Rixson
Model: 219

Specify Model Options
Rixson
Rixson Model 219
3/4" Offset Half-Surface Intermediate Pivot

Application
Special Order Only / Factory Lead Time 3-4 Weeks
Half Surface
ANSI C07331

Handing
Specify LH or RH
Door Handing Diagram

Finish
Specify 605, 606, 612, 613, 625 or 626

Bright Brass Satin Brass Satin Bronze Dark Bronze Bright Chrome Satin Chrome
605 - Bright Brass 606 - Satin Brass 612 - Satin Bronze 613 - Oil Rubbed Bronze 625 - Bright Chrome 626 - Satin Chrome
605 (US3) 606 (US4) 612 (US10) 613 (US10B) 625 (US26) 626 (US26D)

Features
  • 3/4" offset half-surface jamb mount
  • 1-3/4" thick doors only
  • Flush door and frame applications only
  • Optional intermediate pivot where door portion cannot be mortised
  • Maintains door alignment
  • Non-ferrous base metal
  • Furnished with wood and machine screws
