Rixson 320 Top Pivot

<< Previous in Center Hung Top Pivots Next in Center Hung Top Pivots >>

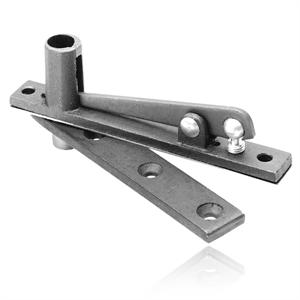

320 Center Hung Top Pivot
320 Center Hung Top Pivot320 Pivot Drawing320 Piovt Dimensions
MSRP: $135.00
Price: $74.25
Manufacturer: Rixson
MFG Model #: 320

Specify Model Options

Finish:
Rixson

Rixson Model 320 Top Pivot

Center Hung Light-Duty

Application
Center Hung
Concealed in Top Jamb
Walking Beam Type 1/2" Diameter Pin

Handing
Non-handed

DownloadsFile Downloads

Features

  • Standard top pivot for Rixson Models 127-3/4, 128-3/4 & 176 Bottom Pivots
  • Walking beam-type pivot 1/2" diameter pivot pin with 3/4" engagement
  • Oil-impregnated sintered bronze bearing
  • Completely concealed when door is closed
  • Furnished with wood and machine screws

Finish
Specify 605, 606, 612, 613, 619, 625 or 626

Bright
Brass
Satin
Brass
Satin
Bronze
Dark
Bronze
Satin
Nickel
Bright
Chrome
Satin
Chrome
605 - Bright Brass 606 - Satin Brass 612 - Satin Bronze 613 - Dark Bronze 619 - Satin Nickel 625 - Bright Chrome 626 - Satin Chrome
605
(US3)
606
(US4)
612
(US10)
613
(US10B)
619
(US15)
625
(US26)
626
(US26D)
