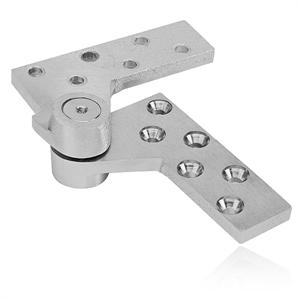

Rixson L180 Offset Lead-Lined Door Top Pivot

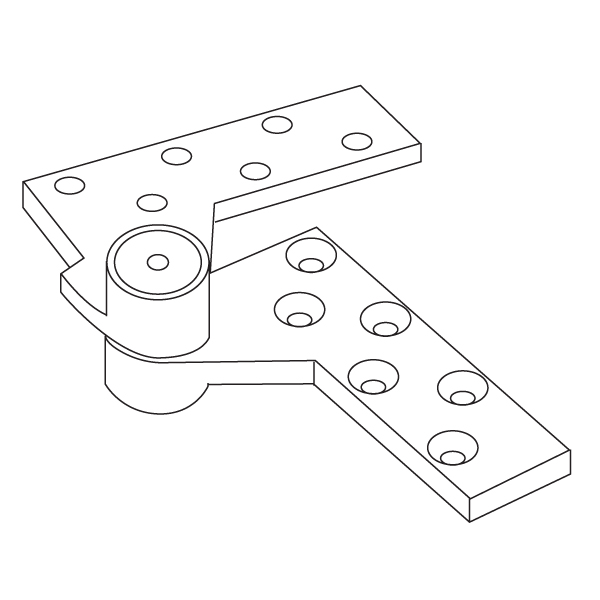

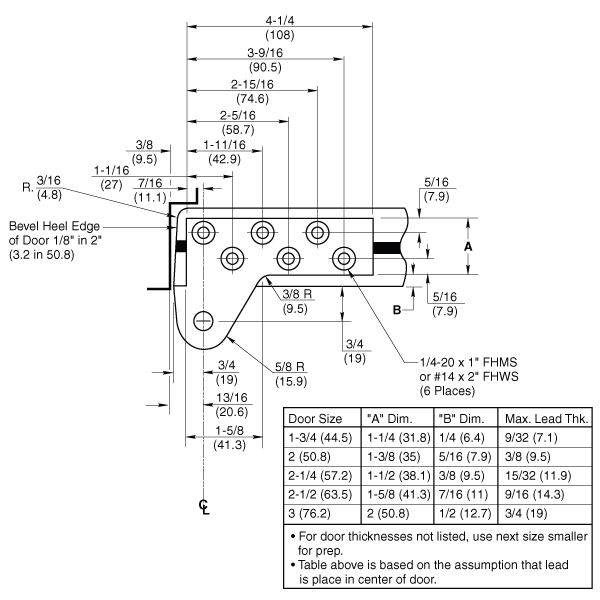

 Rixson L180 Offset Top Pivot Rixson L180 Offset Top Pivot Drawing Rixson L180 Offset Top Pivot Dimensions |
|
MSRP: $285.00
Our Price: $165.30
Manufacturer: Rixson
MFG Model #: L180
Specify Model Options
| |
|
Rixson Model L180
3/4" Offset Heavy-Duty/Lead-Lined Top Pivot
Application
Lead-Lined/Heavy/High Traffic
Full Mortise
Handing
Non-handed
Finish
Specify 605, 606, 612, 613, 625 or 626
|
Bright
Brass
|
Satin
Brass
|
Satin
Bronze
|
Dark
Bronze
|
Bright
Chrome
|
Satin
Chrome
|
|
|
|
|
|
|
|
605
(US3)
|
606
(US4)
|
612
(US10)
|
613
(US10B)
|
625
(US26)
|
626
(US26D)
|
Features
- Standard top pivot for L147, L117 pivots, L27 and L25 floor closers
- Screw holes designed to straddle lead in the middle of the door
- 1-3/4" thick door stocked. Factory order for 2", 2-1/4" 2-1/2" and 3" Thick Doors
- Non-ferrous base material
- 3/4" offset (measured from centerline of pivot to face of door)
- Furnished with wood and machine screws
