Rixson Model 0601

<< Previous in Electromagnetic Holders Next in Electromagnetic Holders >>
0601 Smok-Chek
MSRP: $716.00
Our Price: $429.60
Manufacturer: Rixson
Model: 601

Specify Model Options
Rixson

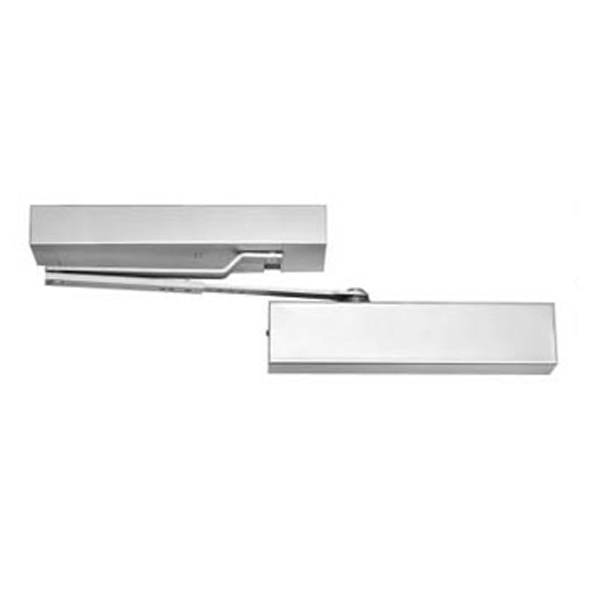

Rixson Model 0601 Smok-Chek® V
Push Side Mounting Electrified Holder/Closer

Application
Cross corridor doors - Double egress - doors swinging in opposite directions
Non-handed
Maximum door weight 250 lbs.
Doors up to 4'0"
ANSI C00231

Finish
689 - Sprayed Aluminum
For other finishes, call for availability

Product Description & Features
  • Push side mount
  • Hold open range 85°-145º
  • Doors may swing and hold at 180º by using special arm 550789
  • Mounts on 2" header
  • Adjustable Spring surface closer
  • Maximum reveal 3-1/2"
  • For reveals 3-1/2" - 5-1/25" use special arm 550789
  • Concealed Switch disconnects hold open
  • 24VAC/DC 80ma or 120VAC 17ma
