Rixson 117-1/4 Offset Pivot Set

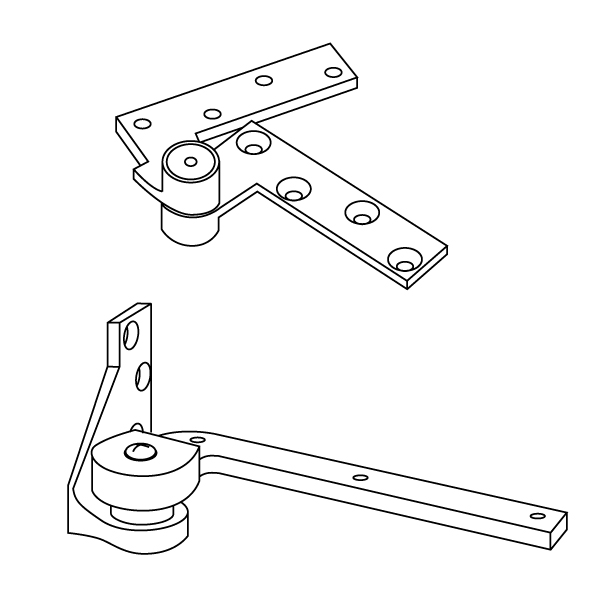

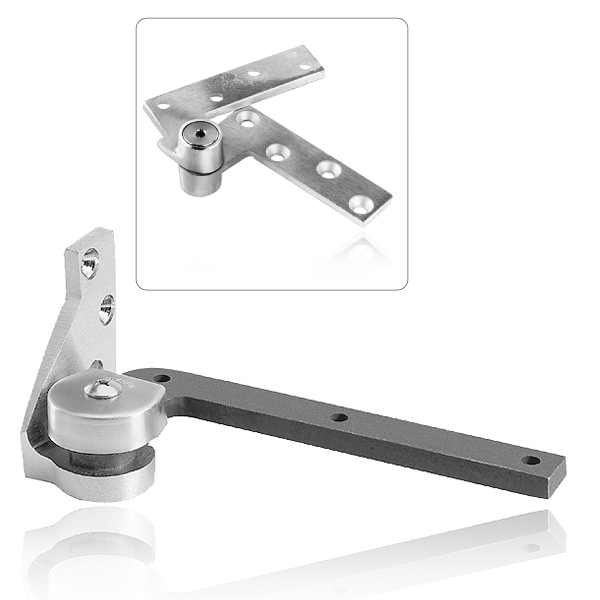

 Rixson Model 117-1/4 Pivot Set Rixson Model 117-1/4 Line Art Rixson Model 117-1/4 Dimensions Rixson Model 117-1/4 Bottom Pivot Rixson Model 180 Top Pivot |
|
MSRP: $363.00
Our Price: $217.80
Manufacturer: Rixson
Model: 117-1/4
Specify Model Options
| |
| |
|
Rixson Model 117-1/4
3/4" Offset Jamb Attached Pivot Set - Includes Bottom and Top Pivot
Application
Single Acting
Interior Doors
Weight to 250 lbs.*
Door Width up to 3'-8"
ANSI C07172
Handing
Specify LH or RH
Finish
Specify 605, 606, 612, 613, 619, 625 or 626
|
Bright
Brass
|
Satin
Brass
|
Satin
Bronze
|
Dark
Bronze
|
Satin
Nickel
|
Bright
Chrome
|
Satin
Chrome
|
|
|
|
|
|
|
|
|
605
(US3)
|
606
(US4)
|
612
(US10)
|
613
(US10B)
|
619
(US15)
|
625
(US26)
|
626
(US26D)
|
Features
Set includes Rixson Model 180 Top Pivot.
Bottom portion can be ordered separately, select "-less top pivot" option.
- Bottom pivot mortised into side jamb
- 3/4" offset (measured from center-line of pivot to face of door)
- Door edges must be beveled 1/8" in 2"
- Weight of door borne by floor
- Not available for fire-rated doors
- Doors will swing 180°, trim permitting
- Furnished with wood and machine screws
- Doors over 60" require the use of one intermediate pivot. Every additional 30" of door height warrants another intermediate pivot.
- Model 119 or M19 Intermediate Pivot(s) sold separately
Notes
*Door size and weight guidelines are determined by using the appropriate number of intermediate pivots.
