Rixson 117-1/2 Heavy-Duty Offset Pivot Set

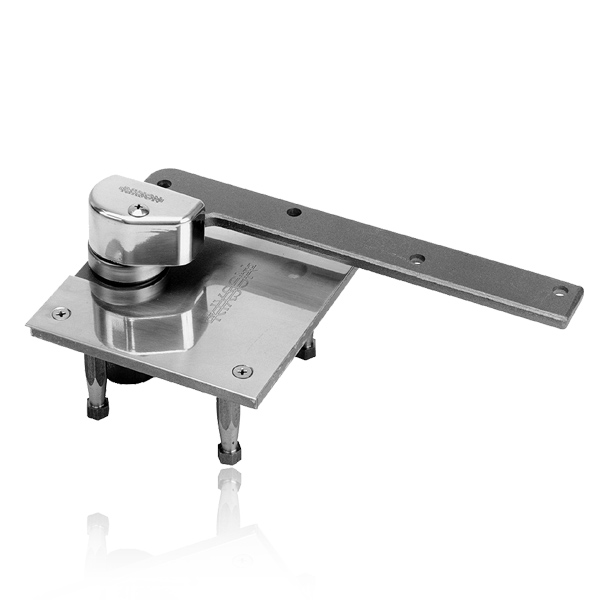

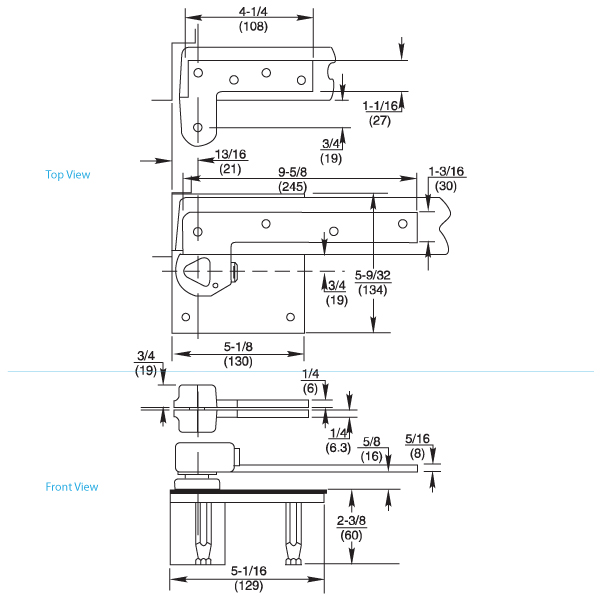

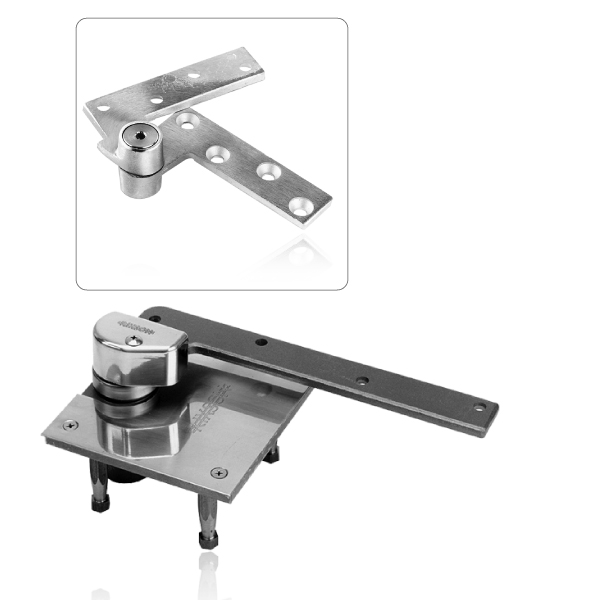

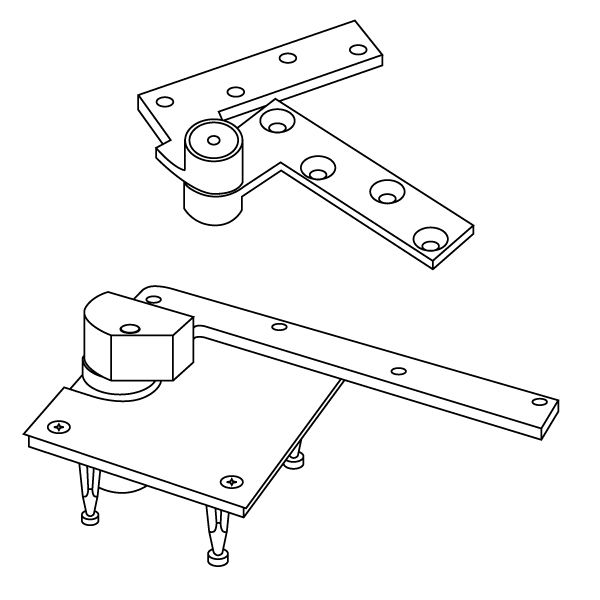

 Rixson 117-1/2 Offset Pivot Set Rixson 117-1/2 Offset Pivot Set Drawing Rixson 117-1/2 Offset Bottom Pivot Rixson 180 Offset Top Pivot Rixson 117-1/2 Offset Pivot Set Dimensions |
|
MSRP: $766.00
Our Price: $459.60
Manufacturer: Rixson
Model: 117-1/2
Specify Model Options
| |
| |
Additional Configurations
* denotes required field
Pivot Package*
|
Rixson Model 117-1/2
3/4" Offset Pivot Set - Includes Bottom and Top Pivot
Application
Single Acting
Exterior or Interior Doors
Weight to 650 lbs.*
Door Width up to 4'-0"
ANSI C07121
Handing
Specify LH or RH
Finish
Specify 605, 606, 612, 613, 625 or 626
| Bright Brass
|
Satin Brass
|
Satin Bronze
|
Dark Bronze
|
Bright Chrome
|
Satin Chrome
|
|
|
|
|
|
|
| 605 (US3)
|
606 (US4)
|
612 (US10)
|
613 (US10B)
|
625 (US26)
|
626 (US26D)
|
Features
Set includes Rixson Model 180 Top Pivot.
Bottom portion can be ordered separately, select "-less top pivot" option.
-
Bottom pivot mortised into floor
-
Non-ferrous base metal
-
3/4" offset (measured from center-line of pivot to face of door)
-
Door edges must be beveled 1/8" in 2"
-
Doors will swing up to 180°, trim permitting
-
Furnished with wood and machine screws
-
Doors over 60" require the use of one intermediate pivot. Every additional 30" of door height warrants another intermediate pivot.
-
M19 Intermediate Offset Hung Pivot sold separately
Notes
*Door size and weight guidelines are determined by using the appropriate number of intermediate pivots.
