Rixson 117-3/4 Heavy-Duty Center Hung Pivot Set

MSRP: $721.00

Our Price: $432.60

Manufacturer: Rixson

Model: 117-3/4

Finish:

* denotes required field

Pivot Package*

Quantity:

Rixson Model 117-3/4

Heavy-Duty Center Hung Pivot Set - Complete Set

Application

Center Hung

Single or Double Acting

Interior or Exterior Doors

Weight to 600lbs.

Door Sizes up to 4'-0" W x 8'-6" H

(for doors over 8'-6" use Model 345 in lieu of Model 340 Top Pivot)

1-3/4" Minimum Door Thickness

ANSI C07021 (modified)

Handing

Non-handed

Finish

Specify 605, 606, 612, 613, 619, 625 or 626 (for Top Pivot Cover Plate and Bottom Pivot Base)

Bright Brass	Satin Brass	Satin Bronze	Dark Bronze	Satin Nickel	Bright Chrome	Satin Chrome

605 (US3)	606 (US4)	612 (US10)	613 (US10B)	619 (US15)	625 (US26)	626 (US26D)

Features

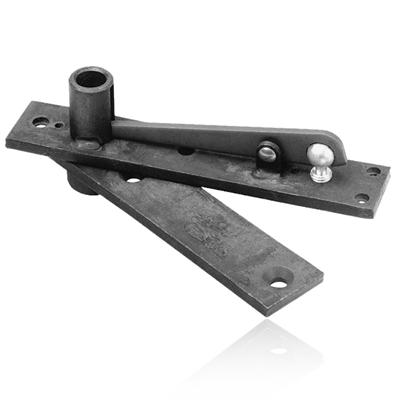

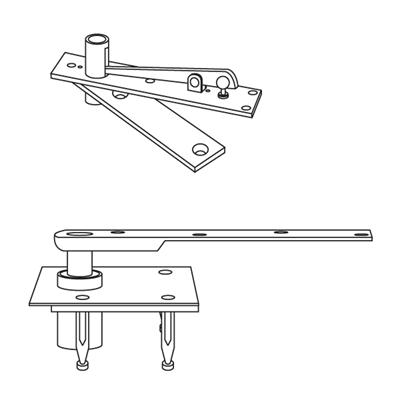

Complete set includes bottom pivot and Rixson Model 340 Top Pivot

Bottom pivot portion can be ordered separately, select "-less top pivot" option.

Model 345 Long Pin Top Pivot upgrade available, select "345 Top Pivot Upgrade" option.

Pivot set is fully concealed
Bottom pivot mortised into floor (includes removable cement anchors in base)
Top pivot mortised into top jamb
Double acting unless stopped by some means on the door frame
Pivot point centered in thickness of door
Door must have radius on pivot edge
Weight of door borne by floor
Doors do not return to center
Furnished with wood and machine screws
Extended spindles in 1/2" increments up to 2" extension available via special order
