Rixson Model 117
|
Click on image to enlarge...
|
MSRP: $342.00
Our Price: $188.10
Manufacturer: Rixson
Model No: 117
Specify Model Options
| |
| |
Additional Configurations
* denotes required field
Pivot Package*
|
Rixson Model 117
3/4" Offset Light-Duty Pivot Set - Includes Top and Bottom Pivot
Application
Single Acting
Interior Doors
Weight to 300 lbs.*
Door Width up to 3'-8"
ANSI C07162/C07202
Handing
Specify LH or RH
 Finish
Specify 605, 606, 612, 613, 619, 625 or 626
|
Bright
Brass
|
Satin
Brass
|
Satin
Bronze
|
Oil Rubbed
Bronze
|
Satin
Nickel
|
Bright
Chrome
|
Satin
Chrome
|
|
|
|
|
|
|
|
| 605
|
606
|
612
|
613
|
619
|
625
|
626
|
Features

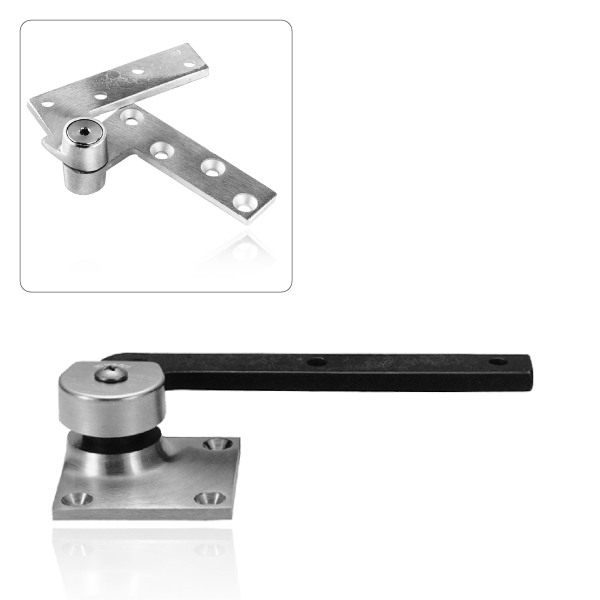

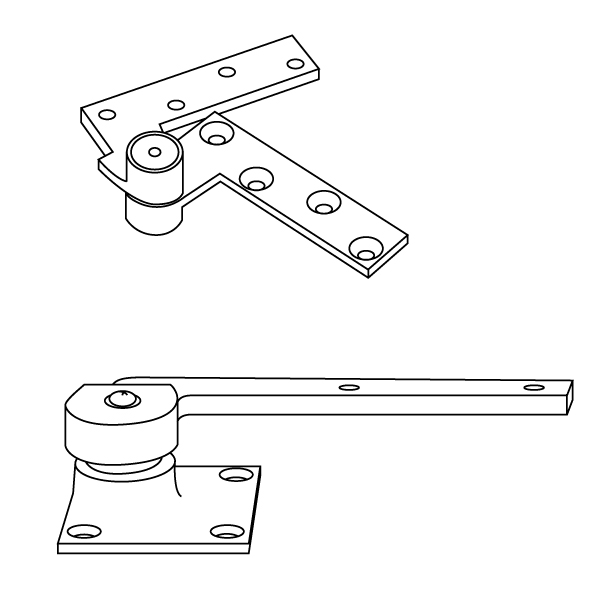

Model 117 Pivot Set includes Rixson Model 180 Top Pivot.
Bottom portion can be ordered separately, select "-less top pivot" option
-

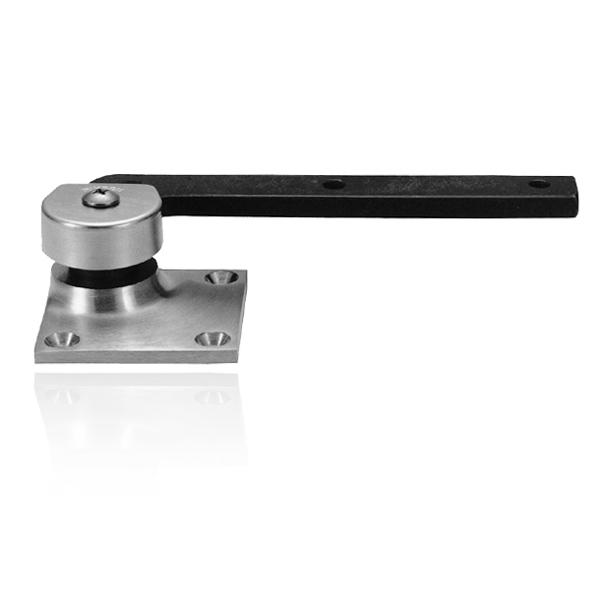

Bottom pivot mortised into floor
-

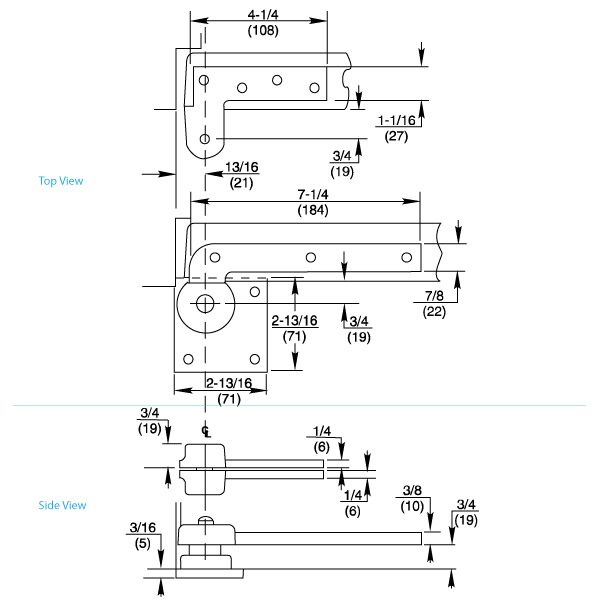

3/4" offset (measured from centerline of pivot to face of door)
-
Door edges must be beveled 1/8" in 2"
-
Doors will swing 180°, trim permitting
-
Doors over 60" require the use of one intermediate pivot. Every additional 30" of door height warrants another intermediate pivot.
-
Model 119 or M19 Intermediate Pivot(s) sold separately
-
Furnished with wood and machine screws
Notes
* Door size & weight guidelines are determined by using the appropriate number of intermediate pivots.
