Rixson 117x1-1/2 Offset Pivot Set

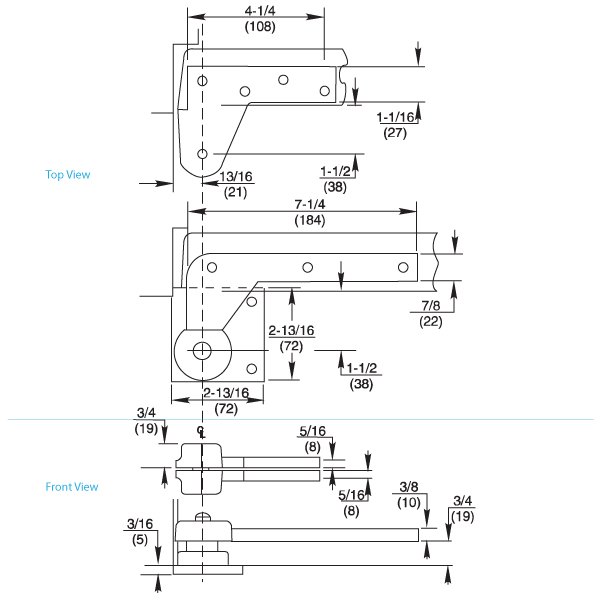

 Rixson 117x1-1/2 Offset Pivot Set Rixson 117x1-1/2 Offset Bottom Pivot Rixson 180 1-1/2 Offset Top Pivot Rixson 117x1-1/2 Offset Pivot Dimensions |
|
MSRP: $607.00
Our Price: $364.20
Manufacturer: Rixson
Model: 117x1-1/2
Specify Model Options
| |
| |
Additional Configurations
* denotes required field
Pivot Package*
|
Rixson Model 117 x 1-1/2

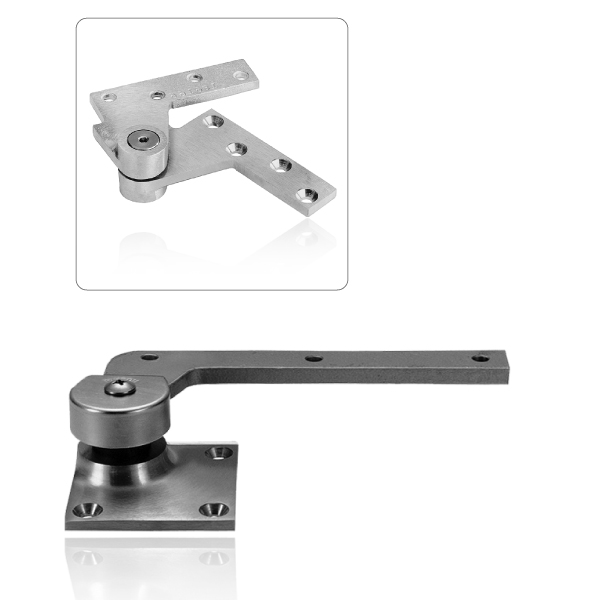

1-1/2" Offset Light-Duty Pivot Set - Includes Bottom and Top Pivot
Application
Single Acting
Interior Doors
Weight to 150 lbs.*
Door Width up to 3'-6"
ANSI C07162
Handing
Specify LH or RH
Finish
Specify 605, 606, 612, 613, 625 or 626
| Bright Brass
|
Satin Brass
|
Satin Bronze
|
Oil Rubbed Bronze
|
Bright Chrome
|
Satin Chrome
|
|
|
|
|
|
|
| 605
(US3)
|
606
(US4)
|
612
(US10)
|
613
(US10B)
|
625
(US26)
|
626
(US26D)
|
Features

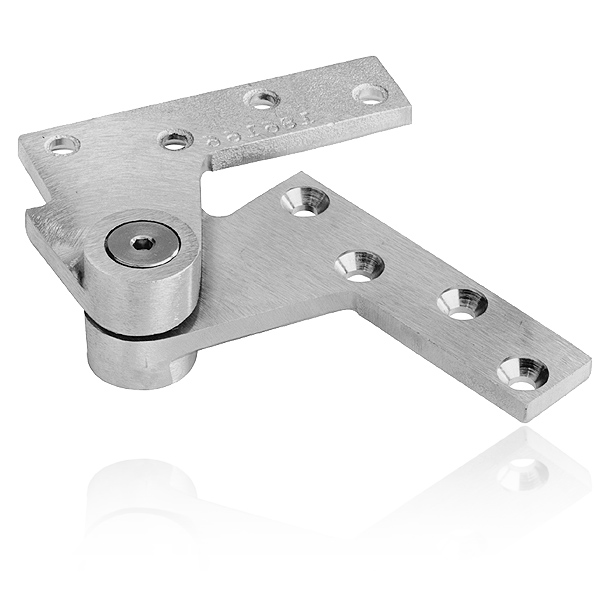

Set includes Rixson Model 180x1-1/2 Top Pivot.
Bottom portion can be ordered separately, select "-less top pivot"
option.
-

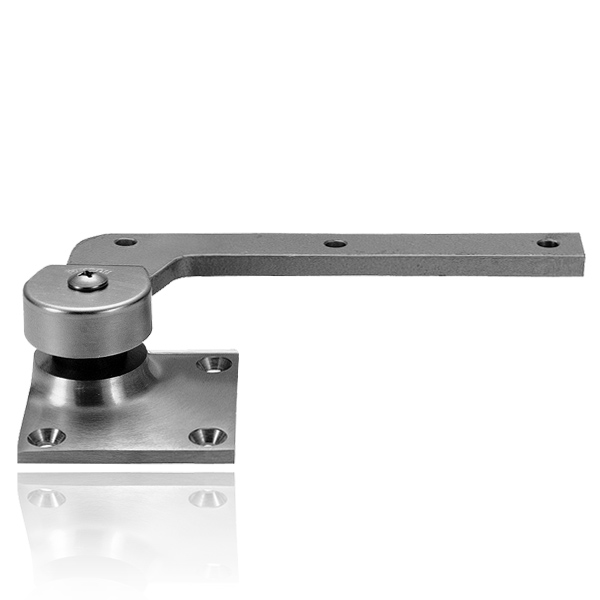

Bottom pivot mortised into floor
-
1-1/2" offset (measured from center-line of pivot to face of door)
-
Door edges must be beveled 1/8" in 2"
-
Doors will swing 180°, trim permitting
-
Doors over 60" require the use of one intermediate pivot. Every additional 30" of door height warrants another intermediate pivot.
-
Model M19x1-1/2 Intermediate Pivot(s) sold separately
-
Furnished with wood and machine screws
Notes
*Door size and weight guidelines are determined by using the appropriate number of intermediate pivots.
