Rixson 127-3/4 Side Jamb Center Hung Pivot Set

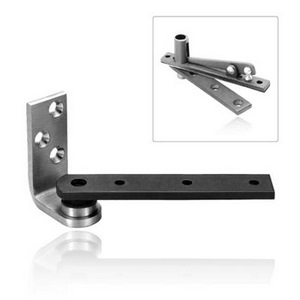

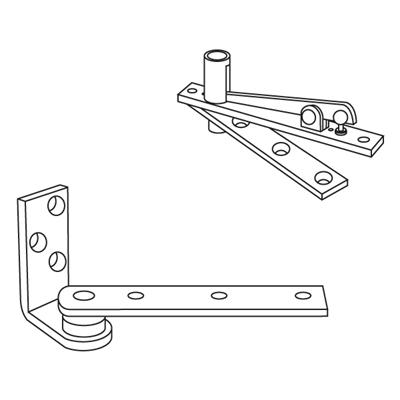

 Rixson Model 127-3/4 Pivot Set Rixson Model 127-3/4 Bottom Pivot Portion Rixson Model 320 Top Pivot Rixson Model 127-3/4 Pivot Set Diagram Rixson Model 127-3/4 Pivot Set Dimensions |
|
MSRP: $237.00
Our Price: $142.20
Manufacturer: Rixson
Model: 127-3/4
Specify Model Options
| |
Additional Configurations
* denotes required field
Pivot Package*
|
Rixson Model 127-3/4
Light-Duty Side Jamb Attached Center Hung Pivot Set - Complete Package
Application
Center Hung
Double or Single Acting
Interior Doors
Weight to 200 lbs.
Door Sizes up to 3'-6" W x 8'-6" H
1-3/8" Minimum Door Thickness
ANSI C07042
Handing
Non-handed
Finish
Specify 605, 606, 612, 613, 619, 625 or 626 (for Top Pivot Cover Plate and Bottom Pivot Base)
|
Bright
Brass
|
Satin
Brass
|
Satin
Bronze
|
Dark
Bronze
|
Satin
Nickel
|
Bright
Chrome
|
Satin
Chrome
|
|
|
|
|
|
|
|
|
605
(US3)
|
606
(US4)
|
612
(US10)
|
613
(US10B)
|
619
(US15)
|
625
(US26)
|
626
(US26D)
|
Features

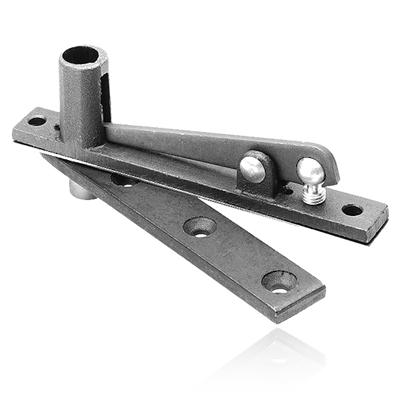

Complete set includes bottom pivot and Rixson 320 Top Pivot
Bottom pivot portion can be ordered separately, select "-less top pivot" option
- Bottom pivot mortised into side jamb
- Top pivot mortised into top jamb
- Double acting unless stopped by some means on the door frame
- Pivot point centered in thickness of door
- Door must have radius on pivot edge
- Weight of door borne by floor
- Doors do not return to center
- Furnished with wood and machine screws
