Rixson 195 Jamb Attached Offset Pivot Set

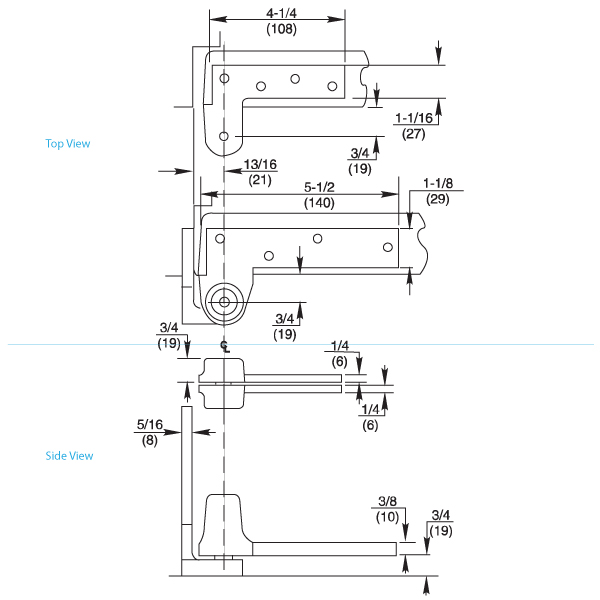

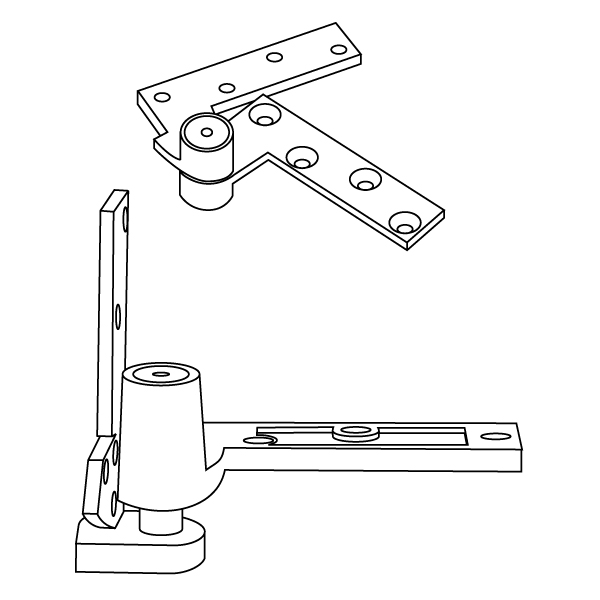

 Rixson 195 Pivot Set Rixson 195 Pivot Set Line Art Rixson 195 Pivot Set Dimensions Rixson 195 Bottom Pivot Rixson 180 Top Pivot |
|
MSRP: $500.00
Our Price: $300.00
Manufacturer: Rixson
Model: 195
Specify Model Options
| |
| |
Additional Configurations
* denotes required field
Pivot Package*
|
Rixson Model 195

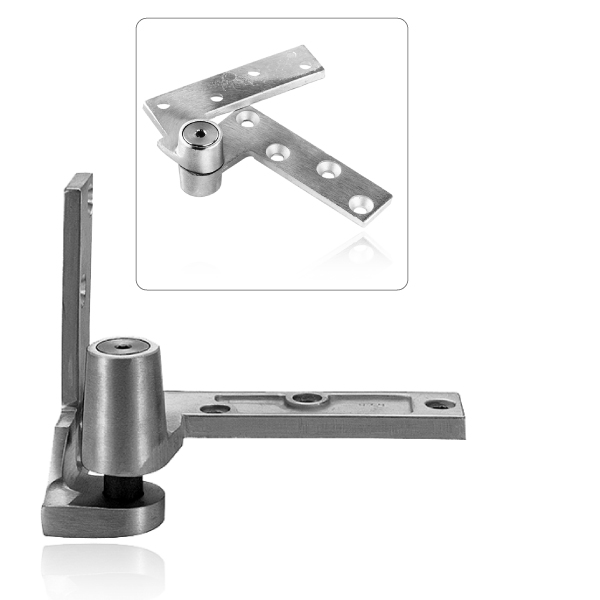

3/4" Offset Jamb Attached Pivot Set - Includes Bottom and Top Pivot
Application
Single Acting
Exterior or Interior Doors
Weight to 450 lbs.*
Door Width up to 4'-0"
ANSI C07131
Handing
Specify LH or RH
Finish
Specify 605, 613, 625 or 626
|
Bright
Brass
|
Dark
Bronze
|
Bright
Chrome
|
Satin
Chrome
|
|
|
|
|
|
605
(US3)
|
613
(US10B)
|
625
(US26)
|
626
(US26D)
|
Features
Set includes Rixson Model 180 Top Pivot. See Rixson Model 680 for Jamb Attached Top Pivot...
Bottom portion can be ordered separately, select "-less top pivot" option.

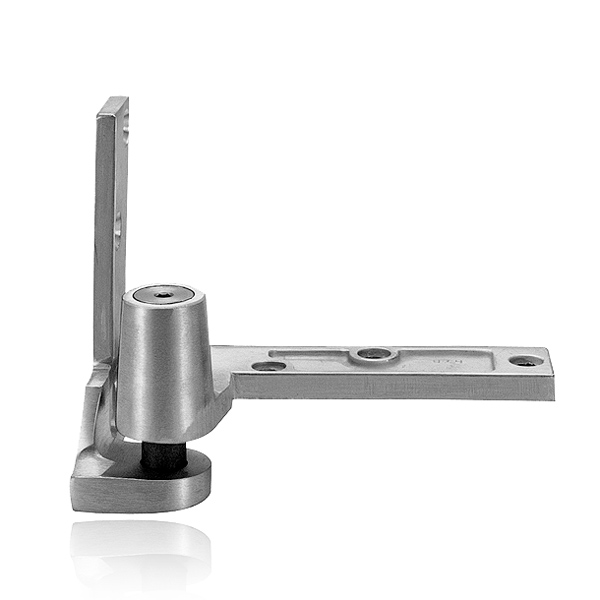

- Bottom pivot mortised into side jamb
- Pivot set can be vertically adjusted up to 3/16" after installation
- Not available for fire-rated doors
- 3/4" offset (measured from center-line of pivot to face of door)
- Door edges must be beveled 1/8" in 2"
- Weight of door is borne by floor portion
- Doors will swing 180°, trim permitting
- Furnished with wood and machine screws
- Doors up to 90" tall normally require the use of one intermediate pivot. Every additional 30" of door height warrants another intermediate pivot.
- Model M19 Intermediate Pivot(s) sold separately
Notes
*Door size and weight guidelines are determined by using the appropriate number of intermediate pivots.
