Rixson 27 Concealed Door Closer Package

Our Price: Starting at $762.60

Manufacturer: Rixson

Model: 27

Quantity:

Rixson Model 27

3/4" Offset Hung Conceald Floor Closer - Complete Package

Application

Single Acting

Exterior or Interior Doors

Weight to 450 lbs.

Door Sizes up to 4'-0"

ANSI C06041

Hold Open

Specify NHO (Non-Hold Open) or SHO (Selective Hold Open)

Positive Dead Stop

Specify 90°, 105° or NEW 180° (See Model 27-180)

Handing

Specify LH or RH

Finish

Specify 605, 606, 612, 613, 619, 625 or 626

Bright Brass	Satin Brass	Satin Bronze	Dark Bronze	Satin Nickel	Bright Chrome	Satin Chrome

605 (US3)	606 (US4)	612 (US10)	613 (US10B)	619 (US15)	625 (US26)	626 (US26D)

Features

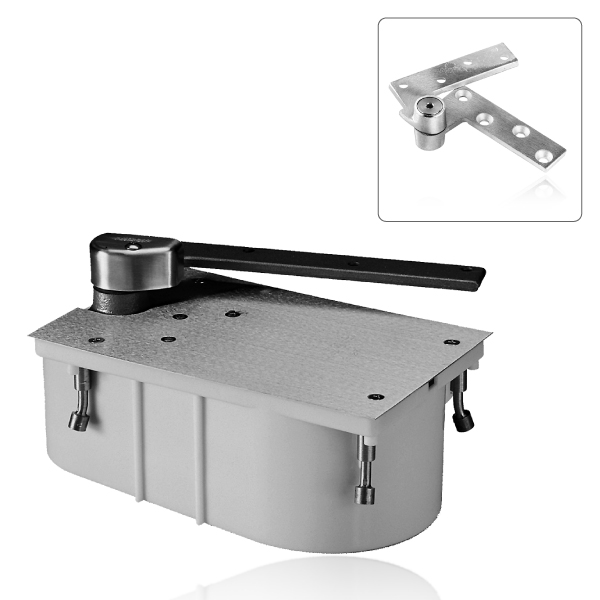

Complete Package includes Rixson Model 27 Closer Body, Cement Case, Floor Plate, Bottom Arm Package and Model 180 Top Pivot

Built-in positive dead stop prevents door from swinging beyond the desired opening degree (specify 90° or 105°)
NEW 180° positive dead stop now available (See Rixson Model 27-180)
Available non-hold open (NHO) or selective hold open (SHO) at same degree as dead stop
Separate and independent valves for closing speed, latch speed and back-check
Cycolac cement case
Furnished with wood and machine screws
Doors up to 90" in height should use one intermediate pivot. Each additional 30" warrants another. Rixson Model M19 intermediate pivots sold separately

Notes

* Door size and weight guidelines are determined by using the appropriate number of intermediate pivots.

* Listed specifications for models stocked and normally available for immediate shipment.

* Please call for fire-rated, PH (ADA), DA, SC, CWF, special finish or other configuration requirements.

File Downloads

Template

Cut Sheet
