Rixson 28 Center Hung Floor Closer Package

<< Previous in Center Hung Floor Closers Next in Center Hung Floor Closers >>
Rixson Model 28

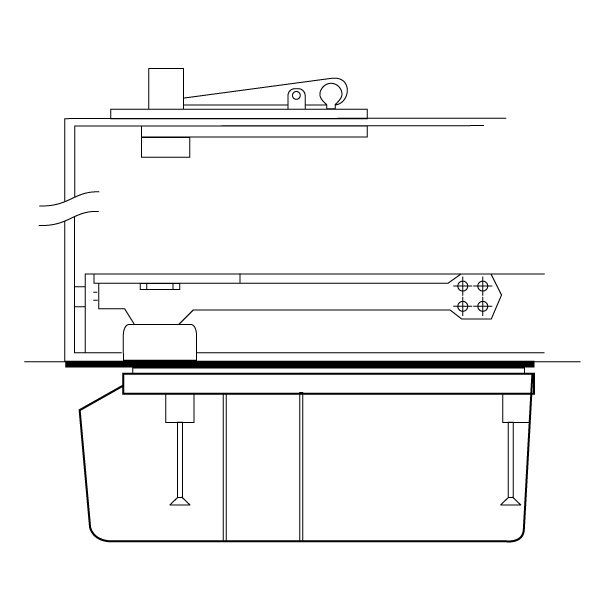

Rixson Model 2828 DrawingRixson Model 34028 Dimensions
Our Price: Starting at $742.80
Manufacturer: Rixson
Model: 28

Specify Model Options

Rixson
Rixson Model 28
Single Acting Center Hung Floor Closer - Complete Package

Application
Single Acting
Exterior or Interior Doors
Weight to 350 lbs.
Door Sizes up to 4'-0" x 8'-6"
ANSI/C06021

Hold Open
Specify Non Hold Open (NHO) or Selective Hold Open (SHO)

Positive Dead Stop
Specify 90° or 105°

Handing
Specify LH or RH
Door Handing Diagram

Finish
Specify 605, 606, 612, 613, 625 or 626 (for Top Pivot Cover Plate and Floor Plate)

Bright
Brass
Satin
Brass
Satin
Bronze
Dark
Bronze
Bright
Chrome
Satin
Chrome
605 - Bright Brass 606 - Satin Brass 612 - Satin Bronze 613 - Dark Bronze 625 - Bright Chrome 626 - Satin Chrome
605
(US3)
606
(US4)
612
(US10)
613
(US10B)
625
(US26)
626
(US26D)

Features
Complete package includes Rixson Model 28 Closer Body, Cement Case, Bottom Arm Package, Floor Plate and Model 340 Top Pivot

  • Built-in positive dead stop prevents door from swinging beyond the desired opening degree
  • Available non hold open (NHO) or selective hold open (SHO) at same degree as dead stop
  • Separate and independent valves for closing speed, latch speed and back-check
  • Arm centering adjustment
  • Cycolac cement case
  • Furnished with wood and machine screws
  • Not allowed for fire rated doors
  • Applied stop required, available separately (see Rixson Model 60131 or similar)
Listed specifications for models stocked and normally available for immediate shipment from Epivots online store. Please call or email for PH, DA, SC, CWF, extended spindles, special finish or other configuration requirements.
