Rixson 28x554 Center Hung Floor Closer Package

<< Previous in Center Hung Floor Closers Next in Center Hung Floor Closers >>

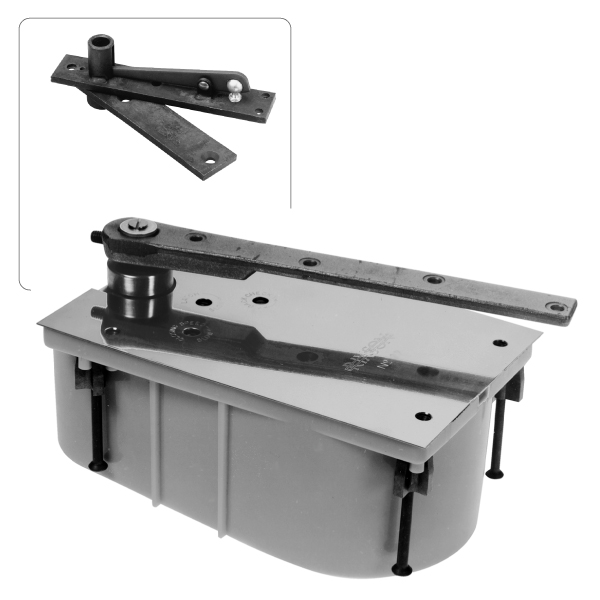

28x554 Concealed Floor Closer

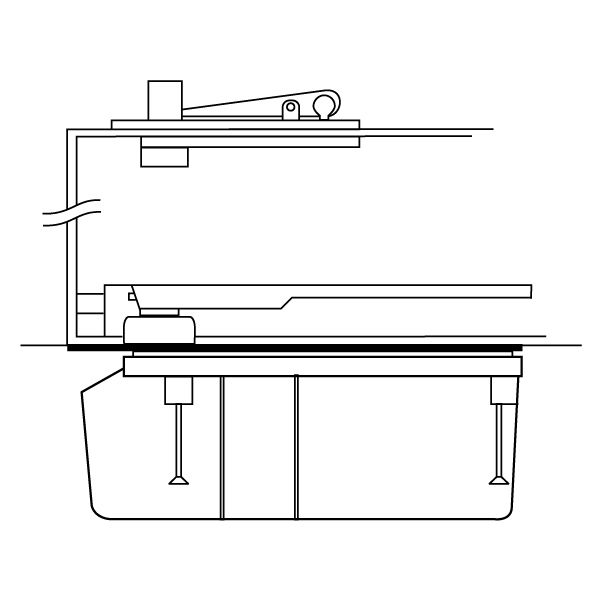

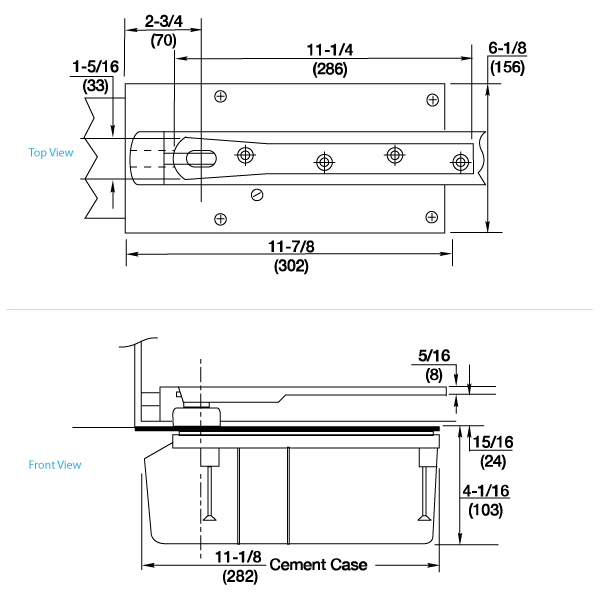

28x554 Concealed Floor Closer28x554 Drawing28x554 Dimensions
Our Price: Starting at $742.80
Manufacturer: Rixson
Model: 28x554

Specify Model Options

Rixson
Rixson Model 28x554
Single Acting Center Hung Floor Closer with 554 Arm - Complete Package

Application
Single Acting
Exterior or Interior Doors
Weight to 350 lbs.
Door Sizes up to 4'-0" x 8'-6"
ANSI C06021

Hold Open
Specify Non Hold Open (NHO) or Selective Hold Open (SHO)

Positive Dead Stop
Specify 90° or 105°

Handing
Specify LH or RH
Door Handing Diagram

Finish
Specify 605, 606, 612, 613, 625 or 626 (for Top Pivot Cover Plate and Floor Plate)

Bright
Brass
Satin
Brass
Satin
Bronze
Dark
Bronze
Bright
Chrome
Satin
Chrome
605 - Bright Brass 606 - Satin Brass 612 - Satin Bronze 613 - Dark Bronze 625 - Bright Chrome 626 - Satin Chrome
605
(US3)
606
(US4)
612
(US10)
613
(US10B)
625
(US26)
626
(US26D)

Features
Complete package includes Rixson Model 28 Closer Body, Cement Case, 554 Bottom Arm Package, Floor Plate and Model 340 Top Pivot

Identical to Model 28 except:

  • 554 Arm is designed to eliminate visible adjusting screws on face of door
  • Arm bolt locks arm to closer spindle (adjustment made through heel of door)
  •
  • Built-in positive dead stop prevents door from swinging beyond the desired opening degree
  • Available non hold open (NHO) or selective hold open (SHO) at same degree as dead stop
  • Separate and independent valves for closing speed, latch speed and back-check
  • Cycolac cement case
  • Furnished with wood and machine screws
  • Not allowed for fire rated doors
  • Applied stop required, available separately (see Rixson Model 60131 or similar)
Listed specifications for models stocked and normally available for immediate shipment from Epivots online store. Please call or email for PH, DA, SC, CWF, extended spindles, special finish or other configuration requirements.
