Rixson Model 30 Center Hung Floor Closer Package
|
|
Our Price: Starting at $901.20
Manufacturer: Rixson
Model: 30
Specify Model Options
| |
| |
Additional Configurations
|

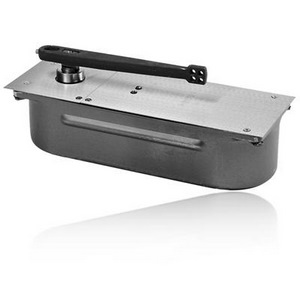

Rixson Model 30
Double Acting Center Hung Floor Closer - Complete Package
Application
Double Acting
Interior Doors
Weight to 200 lbs.
Door Sizes up to 4'-0" x 8'-6"
ANSI/C06012
Hold Open
Specify Non Hold Open (NHO) or Automatic Hold Open (A90)
Handing
Non-handed
Finish (for Floor Plate & Top Pivot Cover Plate)
Specify 605, 606, 612, 613, 619, 625 or 626
|
Bright
Brass
|
Satin
Brass
|
Satin
Bronze
|
Oil Rubbed
Bronze
|
Bright
Chrome
|
Satin
Chrome
|
|
|
|
|
|
|
| 605
|
606
|
612
|
613
|
625
|
626
|
Features
Complete package includes Rixson Model 30 Closer Body, Cement Case, Bottom Arm Package, Floor Plate and Model 340 Top Pivot
-
Available non hold open (NHO) or automatic hold open at 90° (A90); requires 95° swing to activate Hold Open
-
Adjustable closing speed valves for each direction of door swing
-
Mechanism returns door to center
-
Maximum door opening 103°
-
Overhead stop recommended for exterior or high traffic doors
-
Steel cement case
-
Arm centering adjustment
-
Not allowed for fire rated doors
-
Wood door plate & shim package available on request (select Wood Door Shim Option)
Listed specifications for models stocked and normally available for immediate shipment from Epivots online store. Please call for fire-rated, PH, DA, SC, CWF, extended spindles, special finish or other configuration requirements.
