Rixson 320 Top Pivot

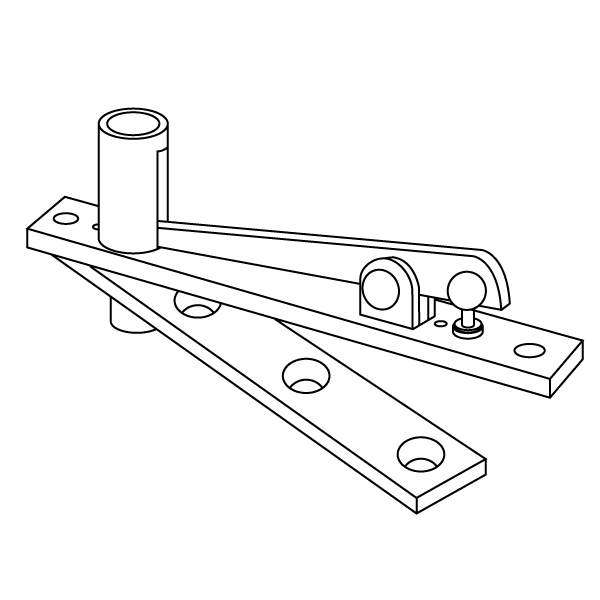

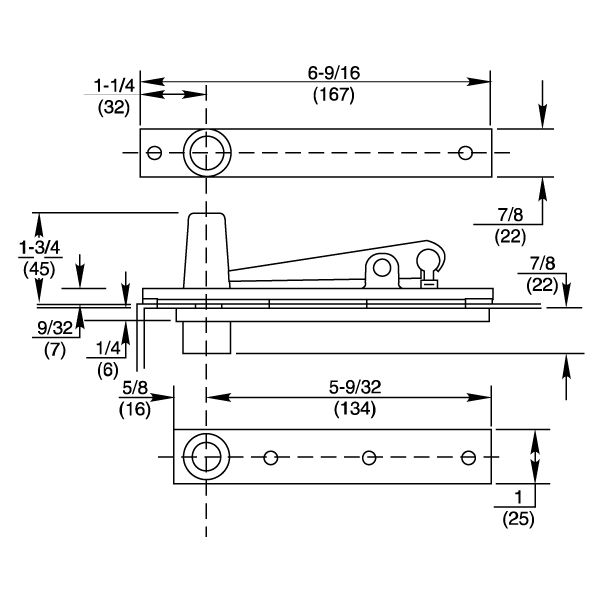

 Rixson 320 Center Hung Top Pivot Rixson 320 Top Pivot Drawing Rixson 320 Top Pivot Dimensions |
|
MSRP: $117.00
Our Price: $70.20
Manufacturer: Rixson
Model: 320
Specify Model Options
| |
|
Rixson Model 320
Center Hung Light-Duty Top Pivot
Application
Center Hung
Fully Concealed
Walking Beam Type – 1/2" Dia.
Handing
Non-handed
Finish
Specify 605, 606, 612, 613, 619, 625 or 626 (for Top Pivot Cover Plate)
|
Bright
Brass
|
Satin
Brass
|
Satin
Bronze
|
Dark
Bronze
|
Satin
Nickel
|
Bright
Chrome
|
Satin
Chrome
|
|
|
|
|
|
|
|
| 605
|
606
|
612
|
613
|
619
|
625
|
626
|
Features
- Standard top pivot for Rixson Models 127-3/4 and 128-3/4 pivot sets
- Walking beam-type pivot – 1/2" diameter pivot pin with 3/4" engagement
- Oil-impregnated sintered bronze bearing
- Completely concealed when door is closed
- Furnished with wood and machine screws
