Rixson Model 370
|
Click on image to enlarge...
|
MSRP: $330.00
Our Price: $181.50
Manufacturer: Rixson
Model No: 370
Specify Model Options
| |
Additional Configurations
* denotes required field
Pivot Package*
|
Rixson Model 370
Center Hung Pivot Set
Application
Center Hung
Double or Single Acting
Interior or Exterior Doors
Weight to 500 lbs.
Door Sizes up to 3'-8" W x 8'-6" H
1-3/4" Minimum Door Thickness
ANSI C07032
Handing
Non-handed
Finish
Specify 605, 606, 612, 613, 619, 625 or 626
|
Bright
Brass
|
Satin
Brass
|
Satin
Bronze
|
Oil Rubbed
Bronze
|
Satin
Nickel
|
Bright
Chrome
|
Satin
Chrome
|
|
|
|
|
|
|
|
| 605
|
606
|
612
|
613
|
619
|
625
|
626
|
Features

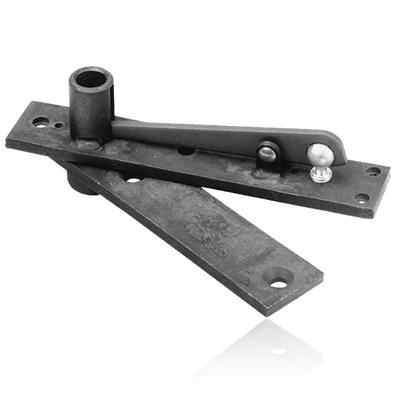

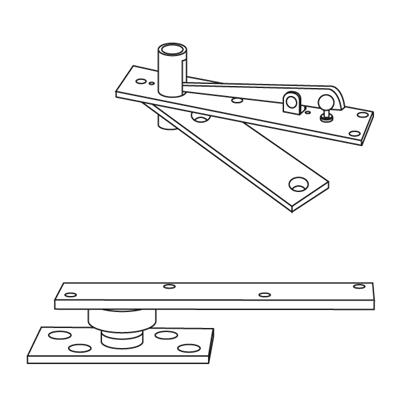

Complete set includes bottom pivot and Rixson Model 340 top pivot
Bottom pivot portion can be ordered separately, select "-less top pivot" option
- Bottom pivot surface mounted or mortised into floor
- Top pivot mortised into top jamb or header
- Pivot features sealed bearing for protection against weather and debris
- Double acting unless stopped by some means on the door frame
- Pivot point centered in thickness of door
- Door must have radius on pivot edge
- Weight of door borne by floor
- Doors do not return to center
- Furnished with wood and machine screws
- Extened spindles in 1/2" increments up to 2" extension available via special order
