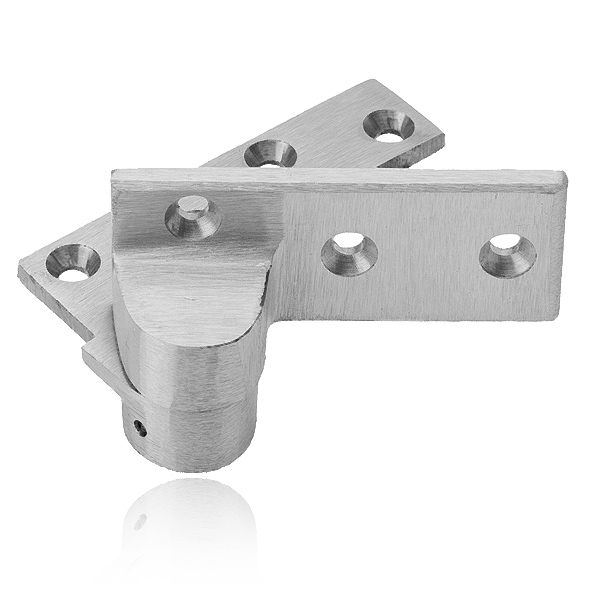

Rixson 380 Half Surface Offset Top Pivot

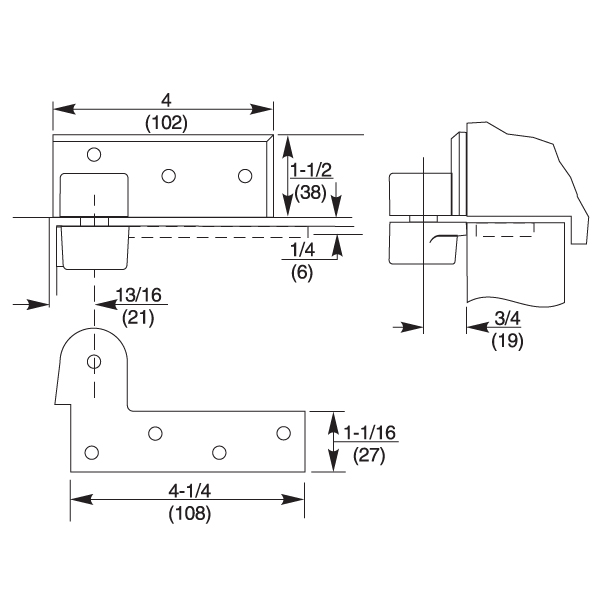

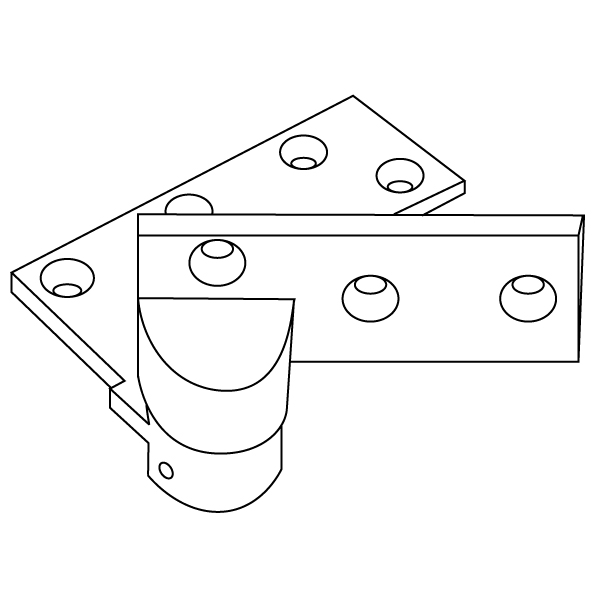

 Rixson 380 Half Surface Offset Top Pivot Rixson 380 Half Surface Offset Top Pivot Drawing Rixson 380 Half Surface Offset Top Pivot Dimensions |
|
MSRP: $237.00
Our Price: $142.20
Manufacturer: Rixson
Model: 380
Specify Model Options
| |
| |
|
Rixson Model 380
3/4" Offset Half-Mortise Top Pivot.
Application
Half Mortise - Door Mortised & Jamb Suface Mount
BHMA / ANSI: C07511
Handing
Specify LH or RH
Finish
Specify 613 or 626. Other finishes available via special factory order *
|
Bright
Brass*
|
Satin
Brass*
|
Satin
Bronze*
|
Dark
Bronze
|
Bright
Chrome*
|
Satin
Chrome
|
|
|
|
|
|
|
|
605
(US3)
|
606
(US4)
|
612
(US10)
|
613
(US10B)
|
625
(US26)
|
626
(US26D)
|
Features
- Optional top pivot where jamb portion cannot be mortised
- Designed for channel iron door frames with aluminum, hollow metal or wood doors
- Non-ferrous base metal
- 3/4" offset (measured from centerline of pivot to face of door)
- Furnished with wood and machine screws
 File Downloads
|
|
|
