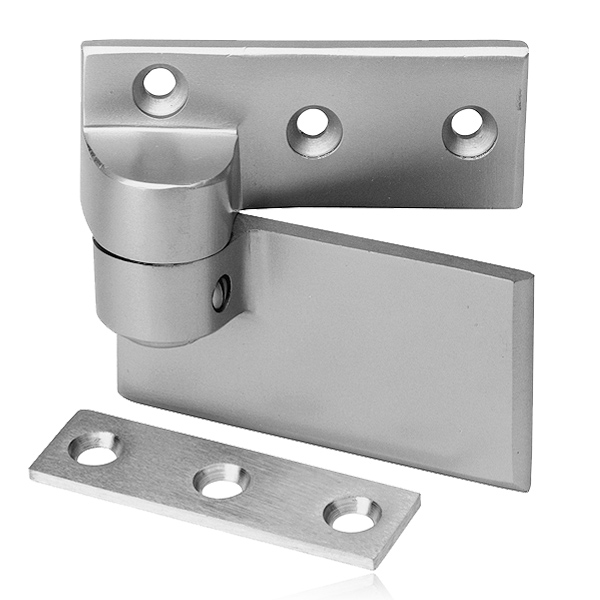

Rixson 480 Full Surface Offset Top Pivot

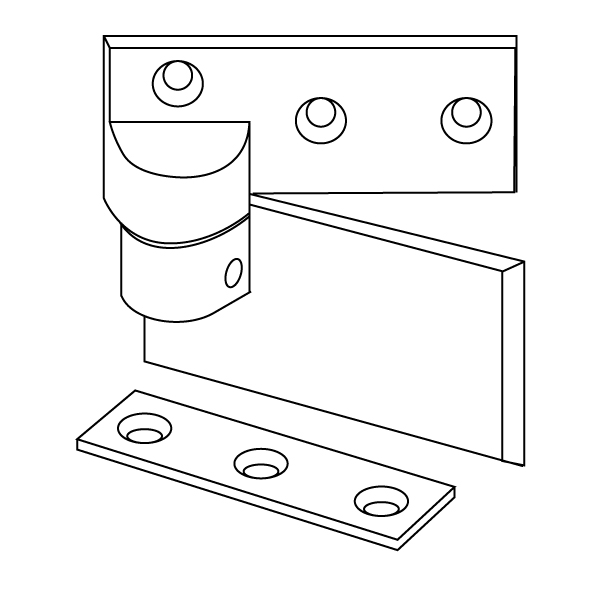

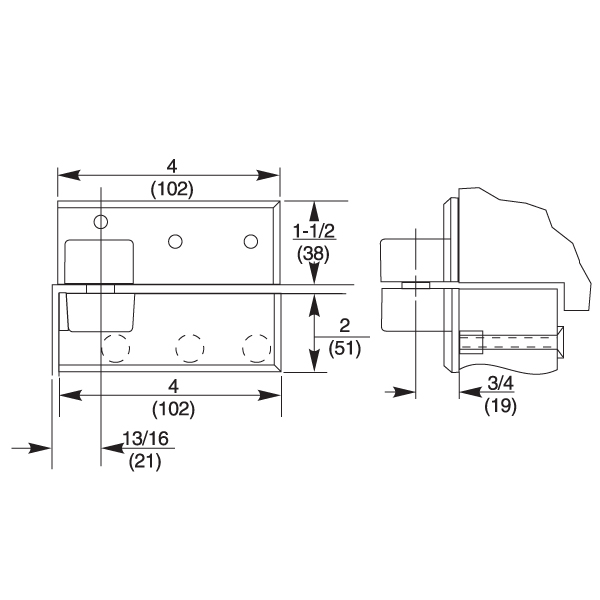

 Rixson 480 Full Surface Offset Top Pivot Rixson 480 Full Surface Offset Top Pivot Drawing Rixson 480 Full Surface Offset Top Pivot Dimensions |
|
MSRP: $291.00
Our Price: $174.60
Manufacturer: Rixson
Model: 480
Specify Model Options
| |
| |
|
Rixson Model 480
3/4" Offset Full-Surface Top Pivot.
Application
Full Surface - Door & Top Jamb Surface Mount
BHMA / ANSI NO: C07521
Handing
Specify LH or RH
Finish
Specify 613 or 626. Other finishes available via special factory order *
|
Bright
Brass*
|
Satin
Brass*
|
Satin
Bronze*
|
Dark
Bronze
|
Bright
Chrome*
|
Satin
Chrome
|
|
|
|
|
|
|
|
605
(US3)
|
606
(US4)
|
612
(US10)
|
613
(US10B)
|
625
(US26)
|
626
(US26D)
|
Features
- Optional top pivot where door and jamb portion cannot be mortised
- Designed for channel iron door frames and any door where through bolting is advantageous
- Non-ferrous base metal
- 3/4" offset (measured from centerline of pivot to face of door)
- Furnished with wood and machine screws
