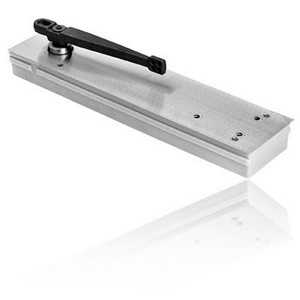

Rixson Model 5014 Thin Slab Center Hung Floor Closer Package
|
|
Our Price: Starting at $741.00
Manufacturer: Rixson
Model: 5014BC
Specify Model Options
| |
| |
| |
Additional Configurations
|
Rixson Model 5014 Series
Single Acting Center Hung Thin Slab Floor Closer - Complete Package
Application
Single Acting
Interior Doors
Weight to 250 lbs.
Door Width up to 42"
ANSI C06021
Spring Size
Size 4
Hold Open
Specify Non-Hold Open w/Back-Check (NHO) or Automatic Hold Open w/Back-Check (90A)
Handing
Specify LH or RH
Finish
Specify 605, 606, 612, 613, 625 or 626
Features
Complete Package includes Rixson Model 5014 Closer Body, 340 Top Pivot, Bottom Arm Package, Floor Plate Package and Cement Case
-
Size 4 spring - 42" door width (Also available in size 3, see Rixson Model 5013)
-
Available non-hold open (NHO) or automatic hold open at 90° (90A)
-
Will swing as far as frame trim will permit
-
Not allowed for fire rated doors
-
Applied stop required (see Rixson Model 60131, sold separately)
-
Wood door plate & shim package available (+WDP)
-
Closer body available less all parts (-LAP)
Listed specifications for models stocked and available for immediate shipment from ePivots online store. Please call for fire-rated, special finish or other configuration requirements.
