Rixson Model 5103 Closer Body
|
|
Our Price: Starting at $505.80
Manufacturer: Rixson
Model: 5103BC-LAP
Specify Model Options
| |
| |
|

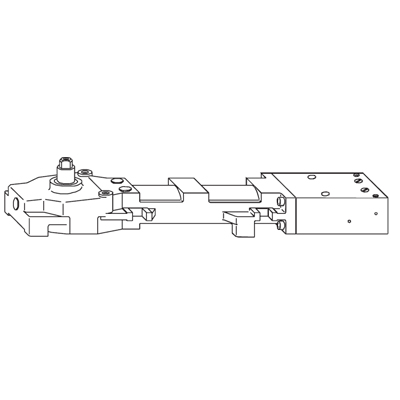

Rixson Model 5103 Closer Body
3/4" Offset Hung Thin Slab Floor Closer - Size 3
Less All Parts
Application
Single Acting
Interior Doors
Weight to 250 lbs.
Door Width to 36"
ANSI C06041
Spring Size
Size 3
Hold Open
Specify Non-Hold Open w/Back-Check (NHO) or Automatic Hold Open w/Back-Check (90A)
Handing
Specify LH or RH
Finish
N/A
Features
-
Interchangeable spindle adapters
-
Size 3 spring - 36" door width (Also available in size 4, see Rixson Model 5104)
-
Available non-hold open (NHO) or automatic hold open at 90° (90A)
-
Vertical door adjustment
-
Cycolac cement case
-
Model M19 Intermediate Pivot recommended, sold separately
-
Doors up to 90" in height should use one intermediate pivot. Each additional 30" warrants another intermediate pivot.
Listed specifications for models stocked and available for immediate shipment from ePivots online store. Please call for fire-rated, special finish or other configuration requirements.
