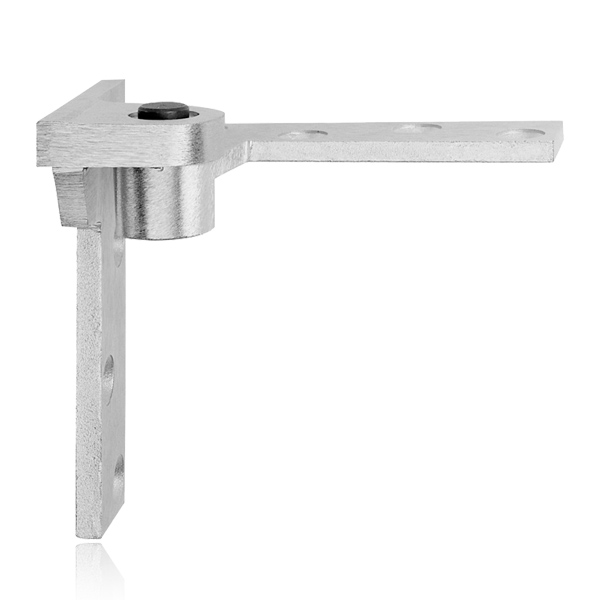

Rixson 680 Jamb Mount Offset Top Pivot

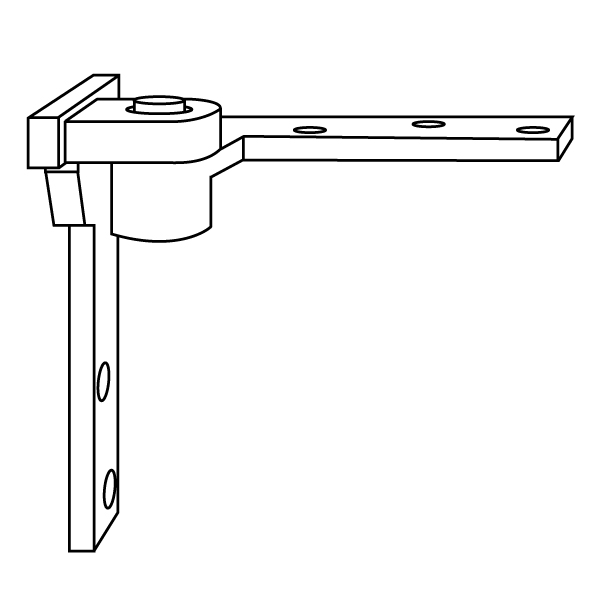

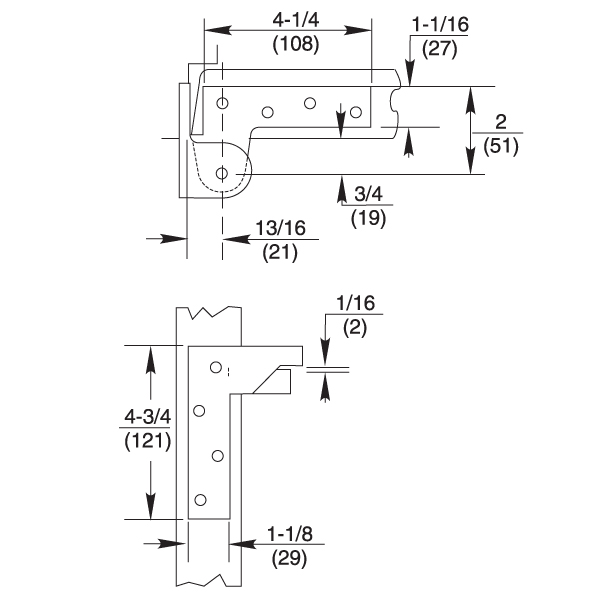

 Rixson 680 Offset Top Pivot Rixson 680 Jamb Mount Offset Top Pivot Drawing Rixson 680 Jamb Mount Top Pivot Dimensions |
|
MSRP: $318.00
Our Price: $190.80
Manufacturer: Rixson
Model: 680
Specify Model Options
| |
| |
|
Rixson Model 680
3/4" Offset Jamb Attached Top Pivot
Application
Side Jamb Mounted
Frame Portion
Handing
Specify LH or RH
Finish
Finish
Specify 613 or 626. Other finishes available via special factory order *
|
Bright
Brass*
|
Satin
Brass*
|
Satin
Bronze*
|
Dark
Bronze
|
Bright
Chrome*
|
Satin
Chrome
|
|
|
|
|
|
|
|
605
(US3)
|
606
(US4)
|
612
(US10)
|
613
(US10B)
|
625
(US26)
|
626
(US26D)
|
Features
- Used where no frame exists above door, or where it is not possible to anchor pivot into header of frame
- Compatible with 3/4" Offset Bottom Pivots
- Non-ferrous base metal
- 3/4" offset (measured from centerline of pivot to face of door)
- Side jamb portion can be surface mounted or mortised
- Can be used with Rixson Model 195 jamb attached bottom pivot
 File Downloads
|
