Rixson 800 Overhead Closer Body -LAP

<< Previous in Overhead Concealed Closer Bodies Next in Overhead Concealed Closer Bodies >>
Model 800 Series
Model 800 SeriesModel 800 Series
Manufacturer: Rixson
MFG Model #: 800-LAP

Specify Model Options

Rixson

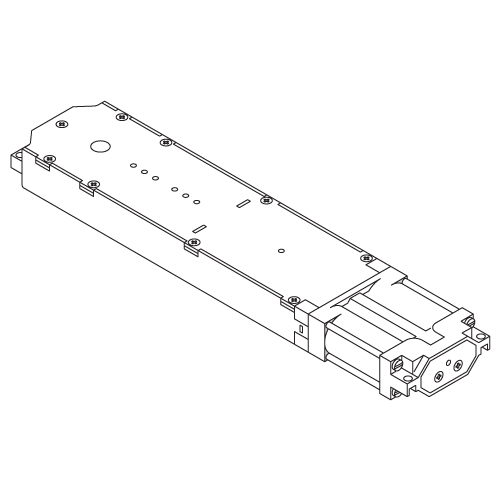

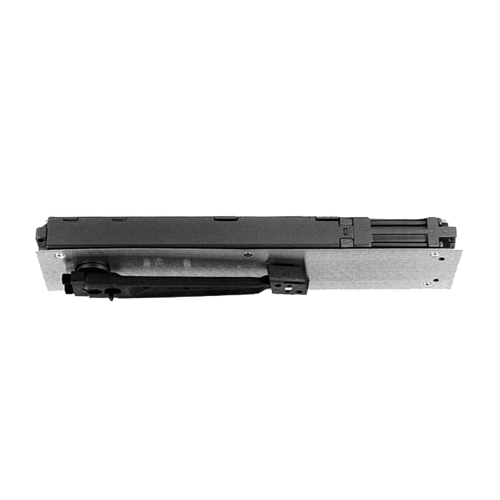

Rixson Model 800 Series Overhead Closer Body
Double Acting Closer Body - Less All Parts

Application
Center Hung
Double Acting
Exterior or Interior Doors
Low to Medium Usage
Weight to 200 lbs.

Spring Sizes
Specify Size 806, 807 or 808


Exterior Door Interior Door

806

2'6" x 8'0" 3'0" x 8'0"

807

3'0" x 8'0" 3'3" x 8'0"

808

3'6" x 8'0" 3'8" x 8'0"

Hold Open
Specify Non-Hold Open (NHO) or Automatic Hold Open (AHO) at 90° or 105° Degrees

Handing
Non-Handed

Finish
N/A

Features
  • Available in non-hold open or automatic hold open at 90° or 105°
  • 1-3/4 Doors only
  • Not available CWF or DA
  • For ADA compliance use Model 806 for interior 36" doors
  • Mounting Brackets, Top Arm & Rail Packages and Cover Plates sold separately.
  • Complete door packages for new installations also available for:
    • Center Hung Applications
      • Wood Door & Frame (W800)
      • Metal Door & Frame (M800)
      • Wood Door & Metal Frame  (MW800)

DownloadsFile Downloads
