Rixson Model 9 Checkmate
|
|
Our Price: Starting at $210.60
Manufacturer: Rixson
Model: 9-CHECKMATE
Specify Model Options
| |
| |
|

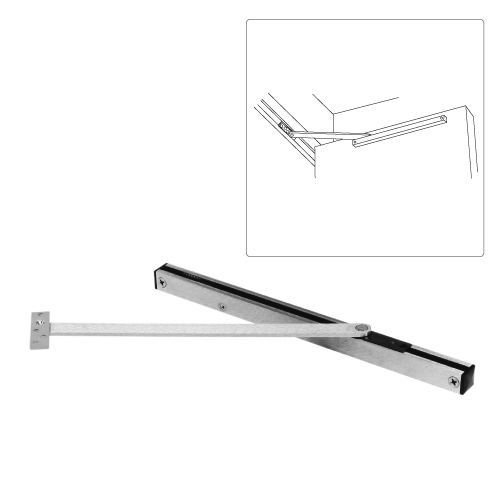

Rixson Model 9 Heavy-DutyCheckmate® Series
Heavy-Duty Adjustable Surface Mount Checkmate® Stop & Holder
Application
Interior or Exterior Doors
Single Acting
Surface Mount Push Side
Door sizes up to 50" wide
(see size chart below for specific model number)
BHMA/ANSI C02511/C02541
Handing
Non-handed
Finish
Specify 605E, 606E, 612E, 613E, 629 or 630
Function
Specify Friction Stay, Hold Open or Stop
Features
- Surface mount for interior or exterior doors
-
Slide track design
-
Recommended for high-traffic, heavy abuse installations
-
Heavy shock absorber spring provides 5°-7° compression before dead stop
-
On/off knob on hold open models
-
Stop, friction stay or hold open function
-
Complete screw packet allow for installation in wood or metal door and frame
-
Non-metal slide block and shock block
-
110° maximum opening
-
1-3/4 minimum door thickness
-
Track is 1-3/16" square tube
-
UL listed as stop function
Door Opening Chart (in inches)
|
Butts / Offset
Pivots
|
Center Hung
Pivots
|
Friction
|
Hold Open
|
Stop
|
|
*24 - 28
|
25-1/2 - 30
|
9-116
|
9-126
|
9-136
|
|
28-1/16 - 33
|
30-1/16 - 36
|
9-216
|
9-226
|
9-236
|
|
33-1/16 - 38
|
36-1/16 - 41
|
9-316
|
9-326
|
9-336
|
|
38-1/16 - 43
|
41-1/16 - 46
|
9-416
|
9-426
|
9-436
|
|
43-1/16 - 48
|
46-1/16 - 50
|
9-516
|
9-526
|
9-536
|
*Butt hung only on this size door.
