Rixson AP3x340 Side Jamb Top Pivot

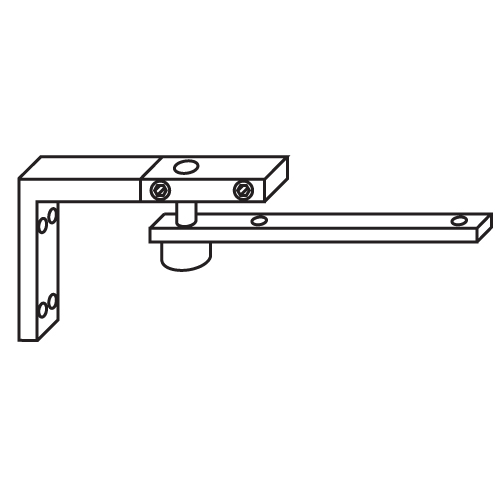

 Rixson Model AP3 Top Pivot  Rixson Model AP3 Top Pivot Dimensions |
|
MSRP: $343.00
Our Price: $205.80
Manufacturer: Rixson
Model: AP3x340
Specify Model Options
| |
| |
|
Rixson Model AP3
Center Hung Angle Pivot-3 Top Pivot (AP3x340)
Application
Center Hung
For use with Rixson Model 370 Pivot -Less Standard Top Pivot
Handing
Specify LH or RH (see template for notes on Door Handing)
Finish
Stocked in 626 (Satin Chrome). Other Finishes Available via Factory Order (3-4 Week Lead Time)
Features
- Furnished with 340 door portion reciver
- Used where no frame exists above door, or where it is not possible to anchor pivot into header of frame
- Center hung applications only, for use with Rixson Model 370 Bottom Pivot (2-3/4" CL Pivot Point)
- Brass construction with oil-lite bearing
- Part is handed to keep installation plate to inside of room or building
