Rixson EM19 Offset Intermediate Pivot with Power Transfer

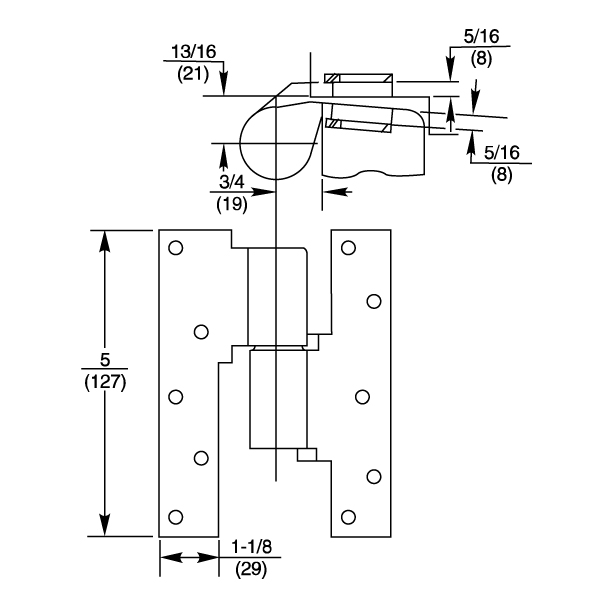

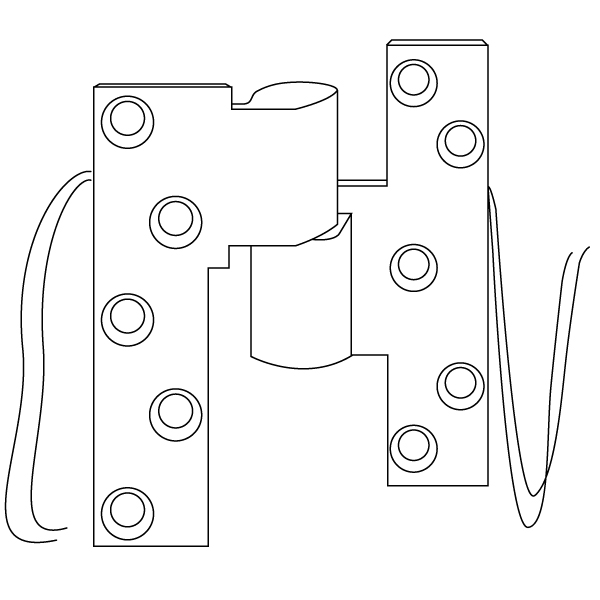

 Rixson EM19 Offset Intermediate 4-Wire Pivot Rixson EM19 Drawing Rixson EM19 Dimensions |
|
MSRP: $446.00
Our Price: $267.60
Manufacturer: Rixson
Model: EM19
Specify Model Options
| |
| |
|
Rixson Model EM19
3/4" Offset Electrified Intermediate Pivot
Application
Full Mortise
4-wire Pivot for Power Transfer
Electrical Ratings
24-gauge wire is rated at 2 amps for low voltage, class II wiring applications.
Handing
Specify LH or RH
Finish
Specify 613 or 626. Other finishes available via special factory order *
|
Bright
Brass*
|
Satin
Brass*
|
Satin
Bronze*
|
Dark
Bronze
|
Bright
Chrome*
|
Satin
Chrome
|
|
|
|
|
|
|
|
605
(US3)
|
606
(US4)
|
612
(US10)
|
613
(US10B)
|
625
(US26)
|
626
(US26D)
|
Features
- 3/4" offset
- Non load-bearing
- Maintains door alignment
- Standard with four wire. Six, eight or twelve wire available via special factory order.
- Non-ferrous base metal
- Door and jamb portion are factory assembled and cannot be separated
- Doors up to 90" in height should use one intermediate pivot. Each additional 30" warrants another standard intermediate pivot.
- Furnished with wood and machine screws
Notes
*Door size and weight guidelines are determined by using the appropriate number of intermediate pivots.
