Rixson Model H117-3/4
|
Click on image to enlarge...
|
MSRP: $1,659.00
Our Price: $899.00
Manufacturer: Rixson
Model No: H117.75
Specify Model Options
| |
Additional Configurations
* denotes required field
Pivot Package*
|

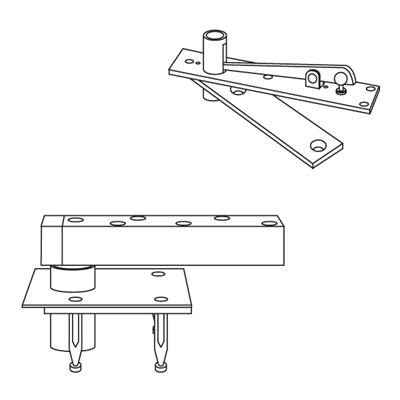

Rixson Model H117-3/4
Heavy-Duty/High Traffic Center Hung Pivot Set
Application
Exterior or Interior Doors
Double or Single Acting
Weight to 1,000 lbs.
Door Sizes up to 4'-0" W x 8'-6" H
(for doors over 8'-6" use Model H345 in lieu of Model H340 Top Pivot)
2" Minimum Thick Doors
ANSI C07011
Handing
Non-handed
Finish
Specify 605, 606, 612, 613, 619, 625 or 626 (for cover plates)
|
Bright
Brass
|
Satin
Brass
|
Satin
Bronze
|
Oil Rubbed
Bronze
|
Satin
Nickel
|
Bright
Chrome
|
Satin
Chrome
|
|
|
|
|
|
|
|
| 605
|
606
|
612
|
613
|
619
|
625
|
626
|
Features

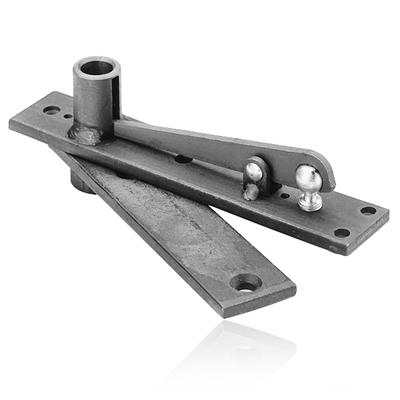

Complete Pivot Set includes Rixson Model H340 Top Pivot
Bottom portion can be ordered separately, select " -Less Top Pivot" option
Model H345 Long Pin Top Pivot upgrade available, select "H345 Top Pivot Upgrade" option
- Pivot set is fully concealed
- Bottom pivot is mortised into floor
- Top pivot is mortised into top jamb
- Equipped with End Load arm for 2" thick doors
- Extra heavy-duty bearings
- Double acting unless stopped by some means on the door frame
- Not allowed for use on labeled doors and frames
- Pivot point centered in thickness of door
- Door must have radius on pivot edge
- Doors do not return to center
- Furnished with wood and machine screws
- Extened spindles in 1/2" increments up to 2" extension available via special order
