Rixson H117-3/4x587 Heavy-Duty Center Hung Pivot Set

MSRP: $1,760.00

Our Price: $1,056.00

Manufacturer: Rixson

Model: H117-3/4x587

Finish:

* denotes required field

Pivot Package*

Quantity:

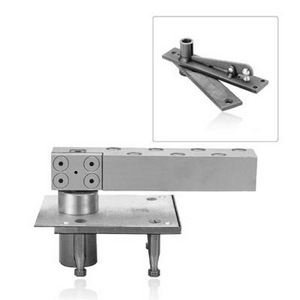

Rixson Model H117-3/4x587

Heavy-Duty/High Traffice Center Hung Pivot Set with 587 Side Load Arm - Complete Package

Application

Exterior or Interior Doors

Double or Single Acting

Weight to 1,000 lbs.

Door Sizes up to 4'-0" W x 8'-6" H

(for doors over 8'-6" use Model H345 in lieu of Model H340 Top Pivot)

1-3/4" Minimum Thick Door

587 Side Load Arm

ANSI C07011 (modified)

Handing

Non-handed

Finish

Specify 605, 606, 612, 613, 619, 625 or 626 (for Top Pivot Cover Plate and Bottom Pivot Base)

Bright Brass	Satin Brass	Satin Bronze	Dark Bronze	Satin Nickel	Bright Chrome	Satin Chrome

605 (US3)	606 (US4)	612 (US10)	613 (US10B)	619 (US15)	625 (US26)	626 (US26D)

Features

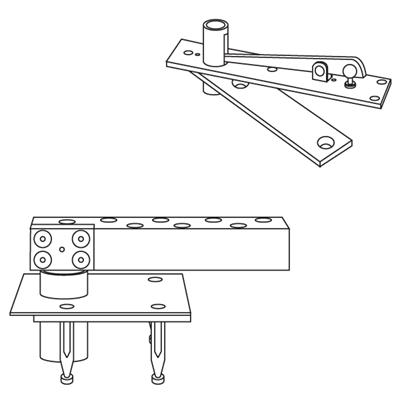

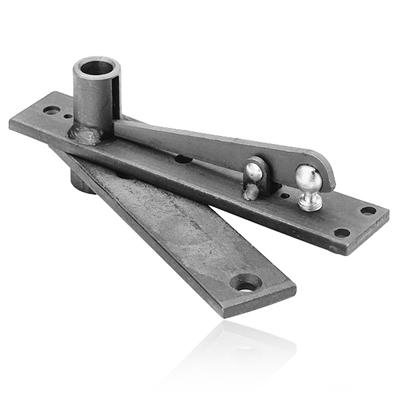

Complete Pivot Set includes Rixson Model H340 Top Pivot

Bottom portion can be ordered separately, select " -Less Top Pivot" option

Model H345 Long Pin Top Pivot upgrade available, select "H345 Top Pivot Upgrade" option

Identical to Model H117-3/4 except:
- Special Side Load (587) arm for 1-3/4" thick doors
- and/or allows pivot point to be moved away from edge of door
Pivot set is fully concealed
Bottom pivot is mortised into floor
Top pivot mortised into top jamb or header
Equipped with 587 side load arm for 1-3/4" thick doors
Extra heavy-duty bearings
Double acting unless stopped by some means on the door frame
Not allowed for use on labeled doors and frames
Pivot point centered in thickness of door
Door must have radius on pivot edge
Doors do not return to center
Furnished with wood and machine screws
Extened spindles in 1/2" increments up to 2" extension available via special order
