Rixson H180x1-1/2 Offset Heavy-Duty Top Pivot

<< Previous in Offset Top Pivots Next in Offset Top Pivots >>

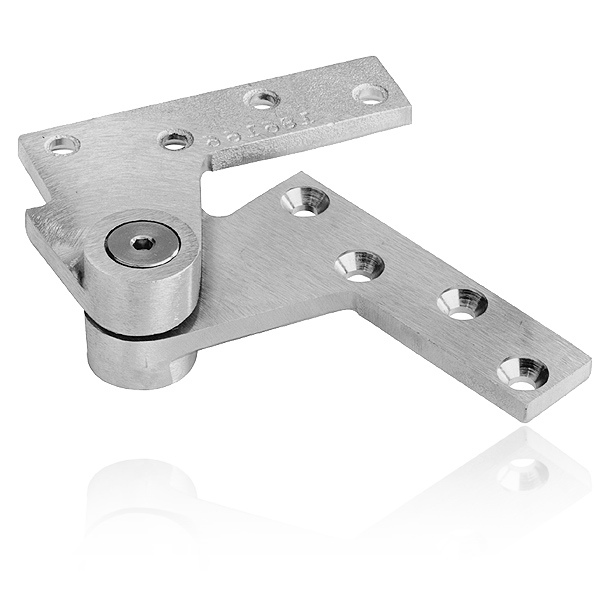

H180x1-1/2 Heavy Duty Offset Top Pivot

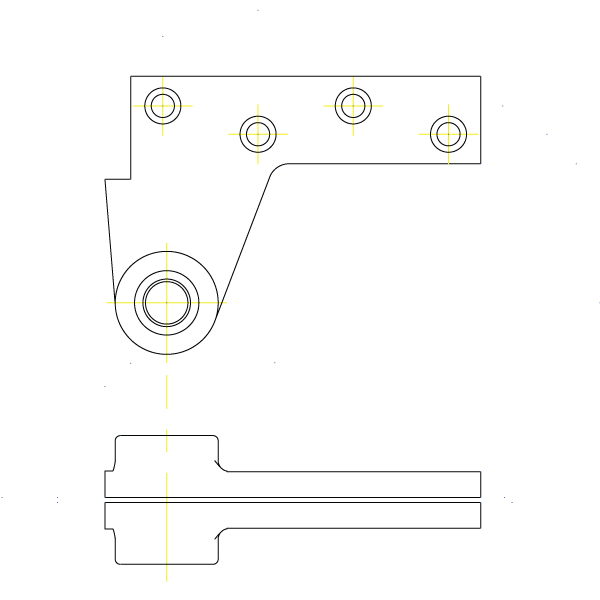

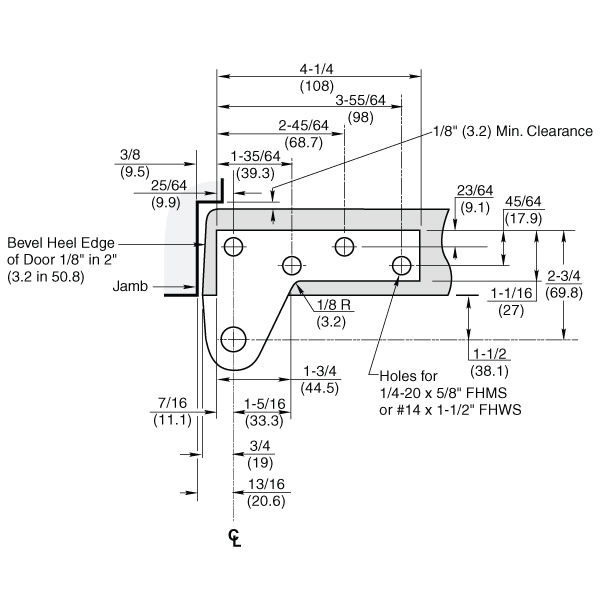

H180x1-1/2 Heavy Duty Offset Top PivotH180x1-1/2 Heavy Duty Offset Top Pivot DrawingH180x1-1/2 Heavy Duty Offset Top Pivot Dimensions
MSRP: $357.00
Our Price: $214.20
Manufacturer: Rixson
Model: H180x1-1/2

Specify Model Options
Rixson
Rixson Model H180x1-1/2
1-1/2" Offset Heavy-Duty Top Pivot

Application
Full Mortise
Heavy Duty
1-1/2" Offset
Handing
Non-handed

Finish
Specify 605, 606, 612, 613, 625 or 626

Bright
Brass
Satin
Brass
Satin
Bronze
Dark
Bronze
Bright
Chrome
Satin
Chrome
605 - Bright Brass 606 - Satin Brass 612 - Satin Bronze 613 - Dark Bronze 625 - Bright Chrome 626 - Satin Chrome
605
(US3)
606
(US4)
612
(US10)
613
(US10B)
625
(US26)
626
(US26D)

Features
  • Standard top pivot for heavy-duty 1-1/2" offset pivot sets
  • Needle bearings are standard
  • Non-ferrous base metal
  • 1-1/2" (38mm) offset (measured from centerline of pivot to face of door)
  • Furnished with wood and machine screws

DownloadsFile Downloads
