Rixson Model H28 Center Hung Floor Closer Package

<< Previous in Center Hung Floor Closers

Next in Center Hung Floor Closers >>

Our Price: Starting at $1,251.60

Manufacturer: Rixson

Model: H28

Specify Model Options

Hold Open:
Dead Stop:
Handing:
Finish:

Quantity:

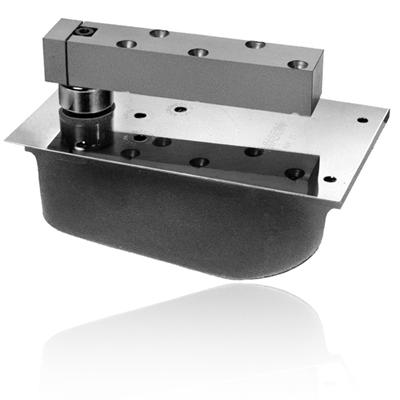

Rixson Model H28

Single Acting Heavy-Duty Center Hung Floor Closer - Complete Package

Application

Single Acting

Exterior or Interior Doors

Extra Heavy High Traffic Doors

Weight to 1,000 lbs.

Door Sizes up to 4'-0" x 8'-6"*

ANSI/C06061

*For doors taller than 8'-6" use top pivot Model H345 in lieu of supplied Model H340

Hold-Open

Select Non Hold Open (NHO) or Selective Hold Open (SHO)

Positive Dead Stop

90° or 105°

Handing

Specify LH or RH

Finish (for Floor Plate & Top Pivot Cover Plate)

Specify 605, 606, 612, 613, 619, 625 or 626

Bright Brass	Satin Brass	Satin Bronze	Oil Rubbed Bronze	Bright Chrome	Satin Chrome

605	606	612	613	625	626

Features

Complete package includes Rixson Model H28 Closer Body, Cement Case, End Load Bottom Arm Package, Floor Plate and Model H340 Top Pivot

For high traffic or extra heavy doors (2" min. thickness)
Additional thrust bearing for greater load capacity
Built-in positive dead stop (90 or 105 degrees) prevents door from swinging beyond the desired opening degree
Available non hold open (NHO) or selective hold open (SHO) at same degree as dead stop
Separate and independent valves for closing speed, latch speed and back-check
Cast iron cement case
Furnished with wood and machine screws
Not allowed for fire rated doors
Applied stop required if not supplied on frame, sold separately (see Rixson Model 60131)

Listed specifications for models stocked and normally available for immediate shipment from Epivots online store. Please call for fire-rated, PH, DA, SC, CWF, extended spindles, special finish or other configuration requirements.

File Downloads

Template

Installation

Cut Sheet
