Rixson L117 Heavy Duty Offset Pivot Set

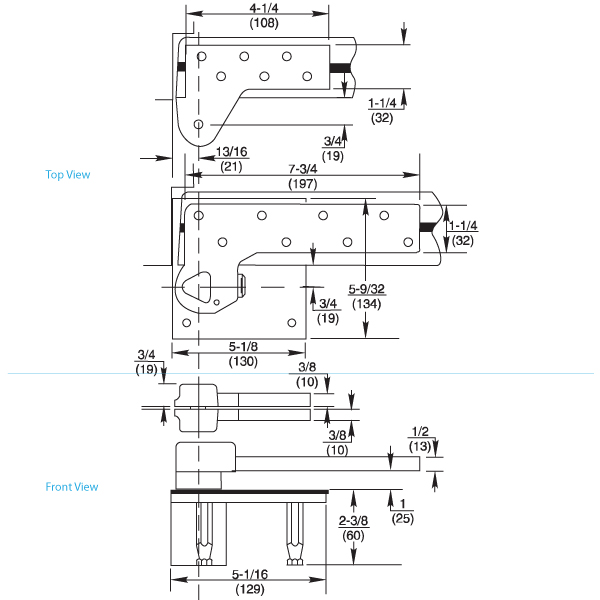

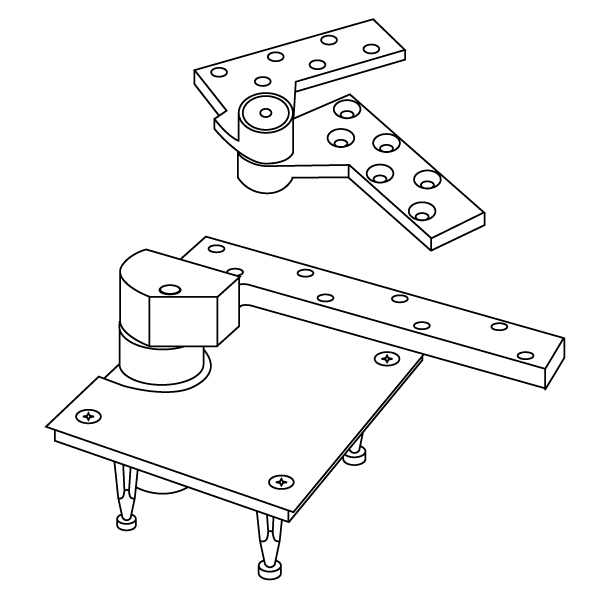

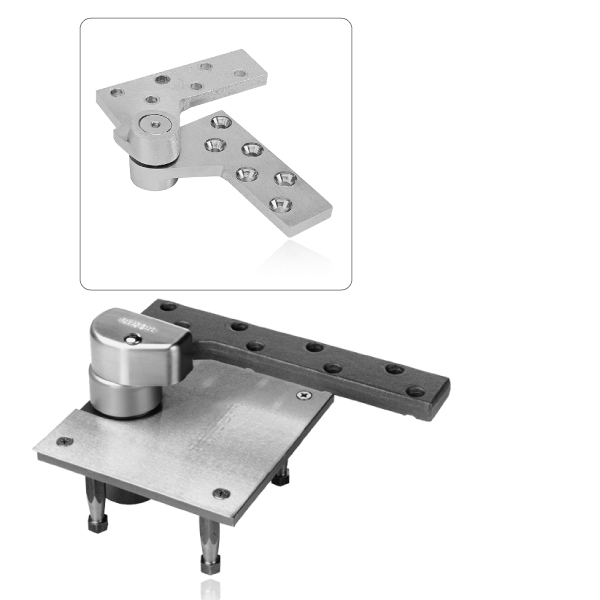

 Rixson L117 Offset Pivot Set Rixson L117 Offset Pivot Drawing Rixson L117 Offset Pivot Dimensions Rixson L117 Offset Bottom Pivot Rixson L180 Top Pivot |
|
MSRP: $1,042.00
Our Price: $625.20
Manufacturer: Rixson
Model: L117
Specify Model Options
| |
| |
Additional Configurations
* denotes required field
Less Top Pivot*
|
Rixson Model L117
3/4" Lead-Lined/Heavy/High Traffic Offset Pivot Set - Includes Bottom and Top Pivot
Application
Exterior or Interior Doors
Lead-Lined/Heavy/High Traffic Doors
Weight to 1,750 lbs.*
Door Width up to 4'-0"
ANSI C07111
Handing
Specify LH or RH
Finish
Specify 605, 606, 612, 613, 625 or 626
| Bright Brass
|
Satin Brass
|
Satin Bronze
|
Oil Rubbed Bronze
|
Bright Chrome
|
Satin Chrome
|
|
|
|
|
|
|
| 605
(US3)
|
606
(US4)
|
612
(US10)
|
613
(US10B)
|
625
(US26)
|
626
(US26D)
|
Features
Set includes Rixson Model L180 Top Pivot.
Bottom portion can be ordered separately, select "-less top pivot" option.
-
Bottom pivot mortised into floor
-
Designed for lead-lined doors with lead in center of door
-
Screw holes in top pivot and bottom arm designed to straddle lead lining
-
Available to accommodate lead in door thicknesses 1-3/4" to 3". 1-3/4" standard.
-
3/4" offset (measured from center-line of pivot to face of door)
-
Door edges must be beveled 1/8" in 2"
-
Doors will swing up to 180°, trim permitting
-
Furnished with wood and machine screws
-
Doors over 60" require the use of one intermediate pivot. Every additional 30" of door height warrants another intermediate pivot.
-
ML19 Intermediate Pivot(s) sold separately
Notes
*Door size and weight guidelines are determined by using the appropriate number of intermediate pivots.
