Rixson M190 Offset Heavy-Duty Intermediate Pivot

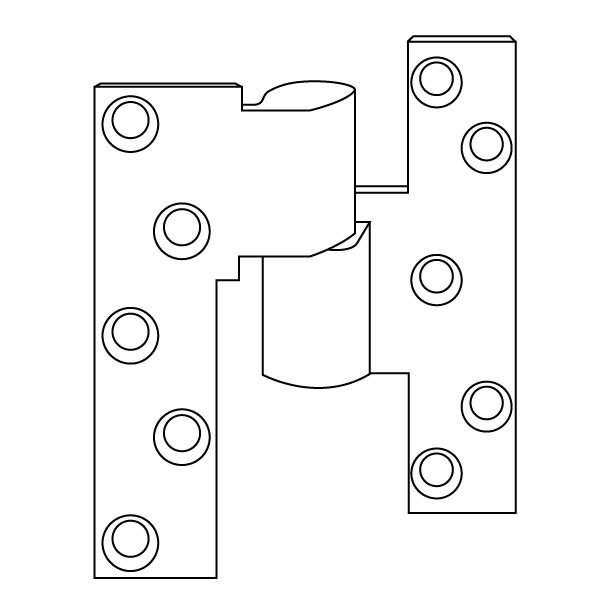

 Rixson M190 Heavy-Duty Intermediate Pivot Rixson M190 Heavy-Duty Intermediate Pivot Drawing Rixson M190 Heavy-Duty Intermediate Pivot Dimensions |
|
MSRP: $304.00
Our Price: $182.40
Manufacturer: Rixson
Model: M190
Specify Model Options
| |
| |
|
Rixson Model M190
3/4" Offset Heavy-Duty Intermediate Pivot
Application
Heavy-Duty Full Mortise
Intermediate
ANSI C07321
Handing
Specify LH or RH
Finish
Specify 605, 606, 612, 613, 619, 625 or 626
|
Bright
Brass
|
Satin
Brass
|
Satin
Bronze
|
Dark
Bronze
|
Satin
Nickel
|
Bright
Chrome
|
Satin
Chrome
|
|
|
|
|
|
|
|
|
605
(US3)
|
606
(US4)
|
612
(US10)
|
613
(US10B)
|
619
(US15)
|
625
(US26)
|
626
(US26D)
|
Features
- 3/4" offset
- Used when frame condition does not allow standard top pivot or Heavy-Duty / High Traffic applications
- Lateral load-bearing
- Heavy-duty needle bearing
- Doors up to 90" in height should use one intermediate pivot. Each additional 30" warrants another intermediate pivot.
- Non-ferrous base metal
- Furnished with wood and machine screws
Notes
*Door size and weight guidelines are determined by using the appropriate number of intermediate pivots.
