Rixson M19x1-1/2 Offset Intermediate Pivot

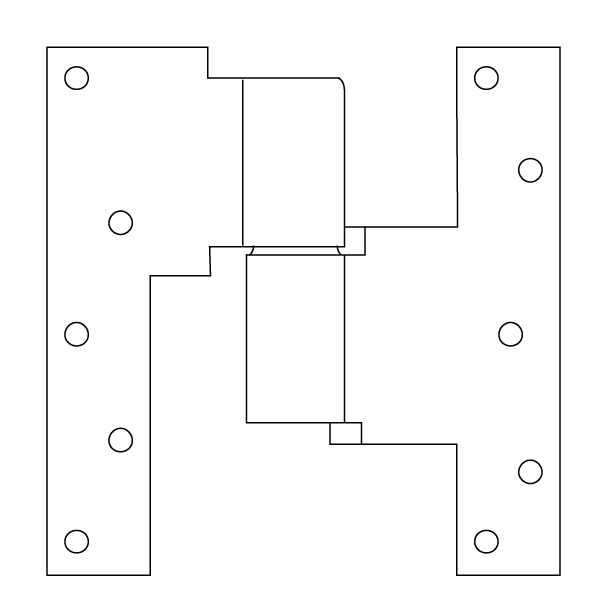

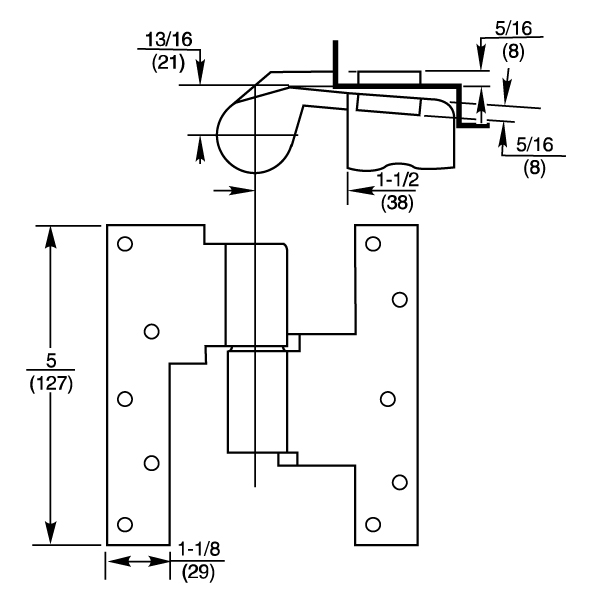

 Rixson M19x1-1/2 Offset Intermediate Pivot Rixson M19x1-1/2 Drawing Rixson M19x1-1/2 Dimensions |
|
MSRP: $374.00
Our Price: $224.40
Manufacturer: Rixson
Model: M19x1-1/2
Specify Model Options
| |
| |
|
Rixson Model M19x1-1/2
1-1/2" Offset Intermediate Pivot
Application
Full Mortise
BHMA/ANSI NO: C07321
Handing
Specify LH or RH
Finish
Specify 605, 606, 612, 613, 625 or 626
|
Bright
Brass
|
Satin
Brass
|
Satin
Bronze
|
Dark
Bronze
|
Bright
Chrome
|
Satin
Chrome
|
|
|
|
|
|
|
|
605
(US3)
|
606
(US4)
|
612
(US10)
|
613
(US10B)
|
625
(US26)
|
626
(US26D)
|
Features
- 1-1/2" offset to clear decorative door or frame trim
- Non load-bearing
- Maintains door alignment
- Doors up to 90" in height should use one intermediate pivot. Each additional 30" warrants another intermediate pivot.
- Furnished with wood and machine screws
Notes
*Door size and weight guidelines are determined by using the appropriate number of intermediate pivots.
