Rixson Model M800 Overhead Concealed Closer Package

<< Previous in Center Hung Overhead Closers Next in Center Hung Overhead Closers >>

MSRP: $1,718.00
Our Price: $1,030.80
Manufacturer: Rixson
Model: M800

Specify Model Options
Rixson

Rixson Model M800 Overhead Closer
Double Acting Overhead Concealed Closer for Metal Door & Frame - Complete Package

Application
Double Acting
Exterior or Interior Doors
Low to Medium Usage
Weight to 200 lbs.

Spring Sizes
806 - Exterior 2'6" x 8'0"
          Interior  3'0" x 8'0"
807 - Exterior 3'0" x 8'0"
          Interior 3'3" x 8'0"
808 - Exterior 3'6" x 8'0"
          Interior 3'8" x 8'0"

Hold Open
Specify NHO (non-hold open), 90A (90 degree) or 105A (105 degree)

Handing
Non-Handed

Finish
Specity 605, 606, 612, 613, 625, or 626

Features

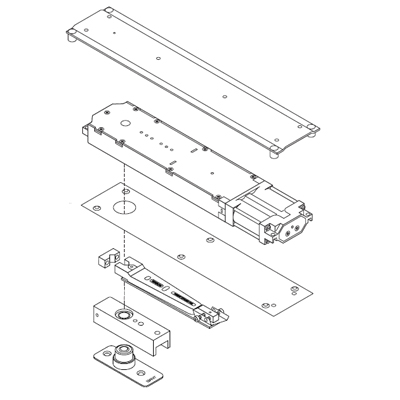

Package includes 800 closer body, arm, mounting channel 1929000, cover plate, and bottom pivot 218.
  • Available in non-hold open or hold open at 90° or 105° degrees
  • 1-3/4 Doors only
  • 1/2" longer than standards spindle is available via special order and must be ordered as part of the closer. Call for availability.
  • Not available CWF or DA
  • For ADA compliance use Model 806 for interior 36" doors
  • Applied stop required (see Rixson Model 60131) order separately

Download TemplateDownloads

Rixson Model M800 Template
