Rixson ML19 Offset Lead-Lined Door Intermediate Pivot

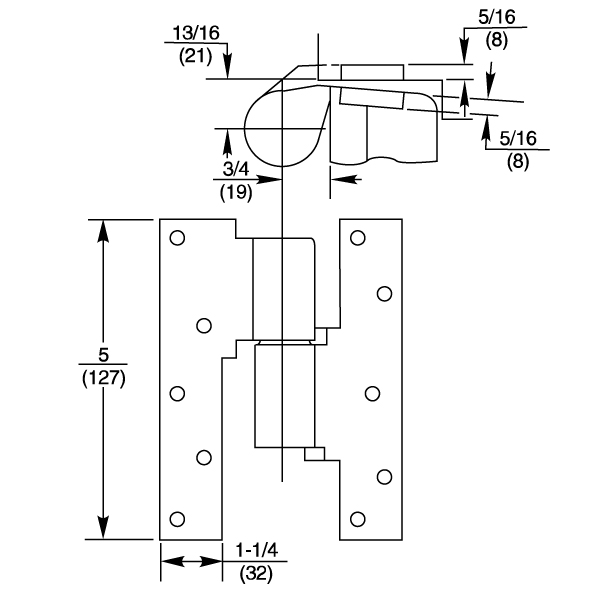

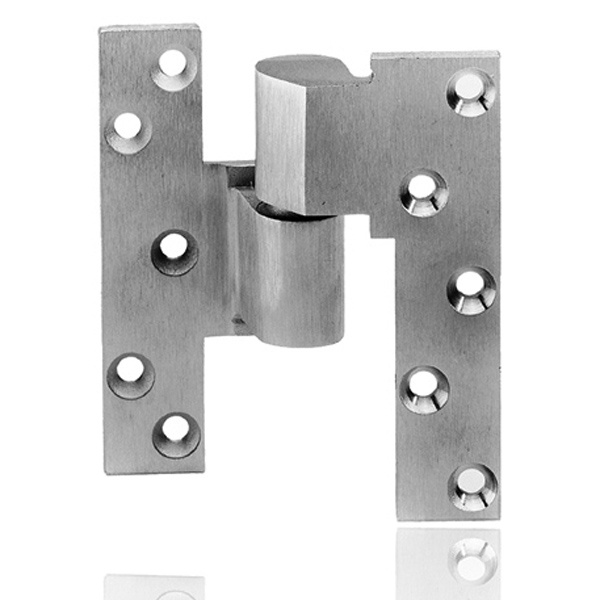

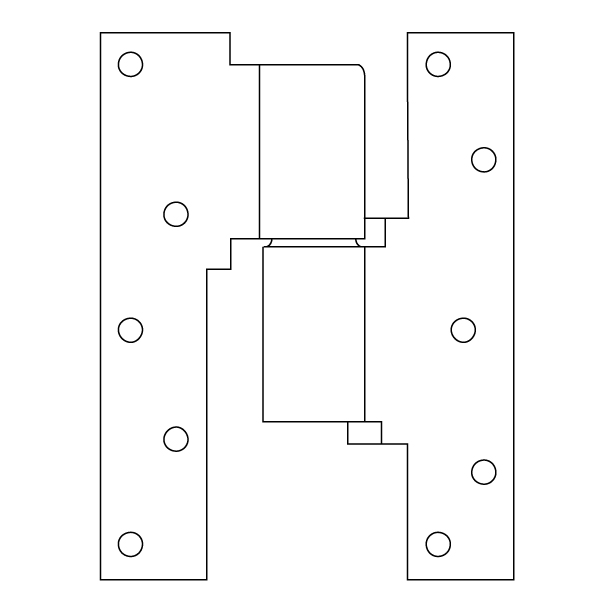

 Rixson ML19 Heavy-Duty/Lead-Lined Intermediate Pivot Rixson ML19 Offset Pivot Drawing Rixson ML19 Offset Intermediate Pivot Dimensions |
|
MSRP: $359.00
Our Price: $215.40
Manufacturer: Rixson
Model: ML19
Specify Model Options
| |
| |
|
Rixson Model ML19
3/4" Offset Intermediate Pivot for Lead Lined Door Applications
Application
Full Mortise
Lead-Lined, Heavy or High Traffic Doors
ANSI C07311
Handing
Specify LH or RH
Finish
Specify 613 or 626. Other finishes available via special factory order *
|
Bright
Brass*
|
Satin
Brass*
|
Satin
Bronze*
|
Dark
Bronze
|
Bright
Chrome*
|
Satin
Chrome
|
|
|
|
|
|
|
|
605
(US3)
|
606
(US4)
|
612
(US10)
|
613
(US10B)
|
625
(US26)
|
626
(US26D)
|
Features
- 3/4" offset
- Designed for doors with lead in center of door
- Screw holes designed to straddle the lead lining
- Available to accommodate lead in door thicknesses 1-3/4" to 3" Thick Doors. 1-3/4" thick door standard, other door thicknesses avialable via special order.
- Load-bearing
- Non-Ferrous base material
- Doors up to 90" in height should use one intermediate pivot. Each additional 30" warrants another intermediate pivot.
- Furnished with wood and machine screws
Notes
*Door size and weight guidelines are determined by using the appropriate number of intermediate pivots.
