Rixson Model MW700 Overhead Concealed Closer Package
|
|
MSRP: $1,801.00
Our Price: $1,044.60
Manufacturer: Rixson
MFG Model #: MW700
Specify Model Options
| |
| |
| |
| |
|
Rixson Model MW700 Overhead Closer
Single Acting Overhead Concealed Closer for Metal Frame & Wood Door - Complete Package
Application
Single Acting
Exterior or Interior Doors
Low to Medium Usage
Weight to 200 lbs.
Spring Sizes
706 - Exterior 2'6" x 8'0"
Interior 3'0" x 8'0"
707 - Exterior 3'0" x 8'0"
Interior 3'3" x 8'0"
708 - Exterior 3'6" x 8'0"
Interior 3'8" x 8'0"
Hold Open
Specify NHO (non-hold open), 90A (90 degree) or 105A (105 degree)
Handing
Specify LH or RH
Finish
Specify 605, 606, 612, 613, 625, or 626
Features

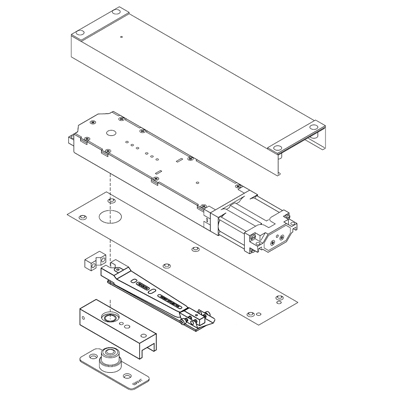

Package includes 700 closer body, arm, mounting channel 1929000, cover plate and bottom pivot 218.
-
Available in non-hold open (door swings to 130° each direction)
-
Availavle in hold open at 90° or 105°
-
1-3/4 Doors only
-
Adjustable closing and latch speeds.
-
Adjustable hydraulic backcheck
-
Not available CWF or DA
-
For ADA compliance use Model 706 for Interior 36" door
-
Applied stop required (see Rixson Model 60131) order separately.
-
1/2" longer than standards spindle is available via special order and must be ordered as part of the closer. Call for availability.
-
Closer body available less all parts (-LAP)
